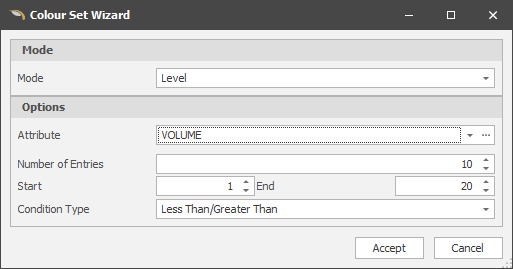

Level
When the mode is set to Level in the Colour Set Wizard: Colour entries are generated based on a specified number sequence (Start number, End number, Number of entries).
Options
Options will vary depending on the mode selected and the (Numeric or Text) type of the attribute(s) you have selected.
Attribute
Use the drop-down to select an attribute of the selected layer(s). To browse attributes and their properties click the ellipsis.
Number of entries
Specify the number of colour entries to generate.
Start and End values
Specify a Start value and End value that will be used with the Number of entries to generate colour bins.

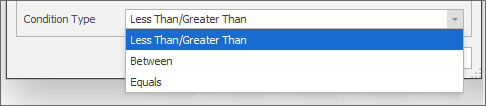

Condition Type
When a Numeric attribute has been selected, select a condition type. Conditions are automatically generated using the condition type and the parameters you have specified, however you can edit the conditions for individual colour entries.

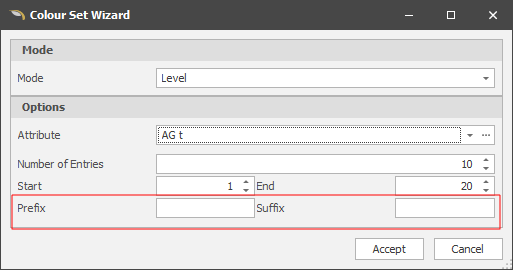

Text
For text attributes a Prefix and Suffix for each entry can be defined:
Accept
Click Accept to apply the settings you have made (or click Cancel to discard your changes).
