Assign Drillhole Intervals

On the Mining | Ring Design tab, in the Ring group, click Edit Ring to enter Edit Ring mode. If no ring is selected, the Selection Assistant will prompt you to select the ring you want to edit.

On the Mining | Edit Ring tab, in the Charging group: When the display is in Edit Ring mode, click Assign Intervals to enter or edit the stemming and charge interval lengths for a selected hole.

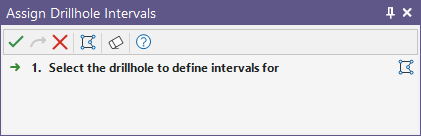

If no holes are selected, you will be prompted to select the holes to be assigned intervals.

Alternatively, you can Digitise the required object/s using the button in the Selection Assistant toolbar. The Selection Assistant will close, providing access to the tools used to create the object.

Edit the To values and select the (Stemming, Charge, and Deck) type of the material for the intervals of the selected hole.

Finally, click Apply to apply the change.

Stemming, Charge, and Deck interval lengths can also be edited via the Property Window.

If a loaded hole is selected, the hole’s existing intervals are automatically loaded into the Drillhole Assign grid.
