Orientation Three Point

On the Vein Intercepts tab, in the Edit group: In Oriented Discs mode, click Orientation Three Point to edit the orientation of any selected interval/s by defining three points on the orientation plane.

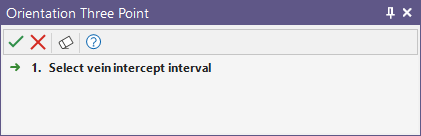

If you have not already selected an interval, you will be prompted to do so by the Selection Assistant:

1. Select the interval to edit and click Select.

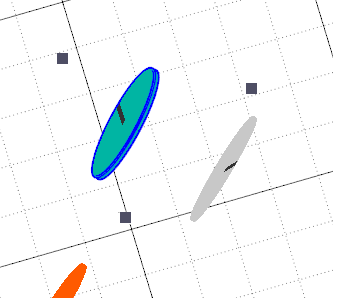

   The cursor will change to a plus and you can select three points on the orientation plane to modify the orientation as required. Selected points are indicated by a square:

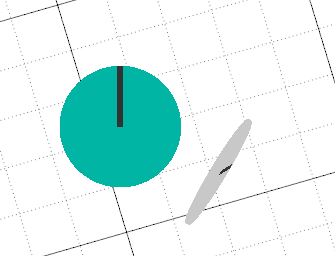

2. Select the third point to change the orientation as configured:
