Surface Map

On the Implicit tab, in the Lithology group: Click Surface Map to generate wireframes and/or solids from surface map data.

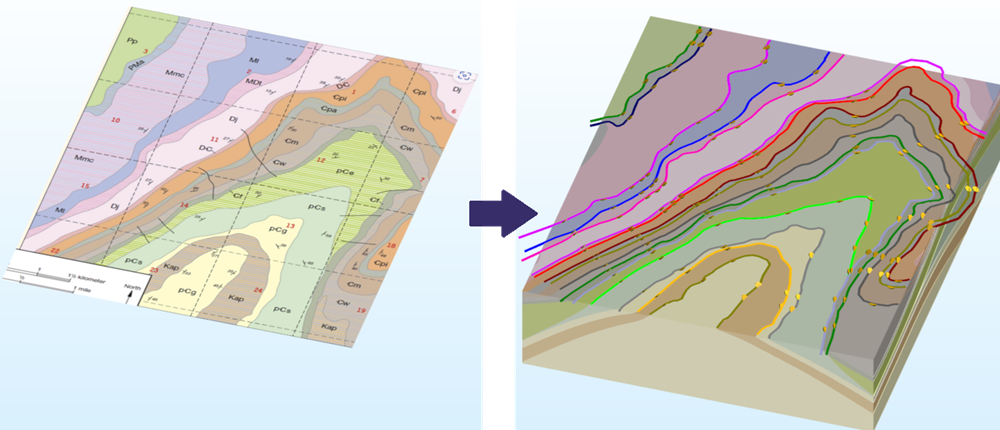

The Surface Map tool enables the generation of wireframes and/or solids from surface map data such as boundary strings and structural measurements.:

In the Surface Map form, you can:

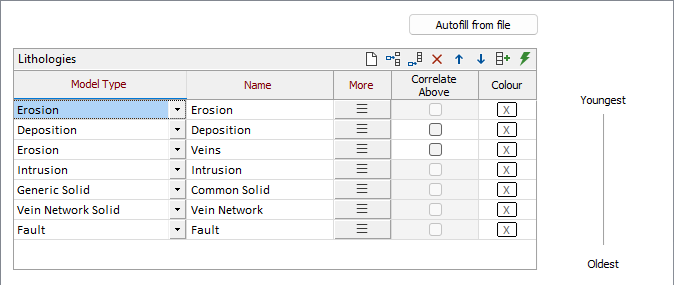

• Order and populate your lithologies, including faults, from colour sets:

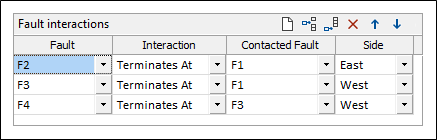

• Define lithology-fault relationships and interactions via sub-forms for each fault:



• And produce a surface map as a result.

Topography
