Geology Model

The Geology Model feature provides a quick, easy and efficient way to create a complete geological model based on chronology and fault interactions. Access to the tool is via the Implicit tab in the Lithology group.

In the Geology Model form, you can:

  • Order and populate your lithologies, including faults, from colour sets:

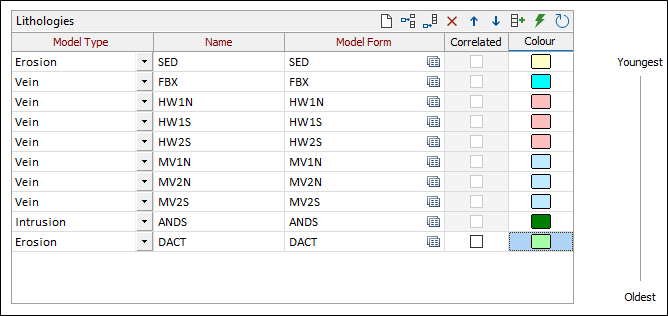

    The Lithology options in the Geology form

  • Define lithology-fault relationships and interactions via sub-forms for each fault:

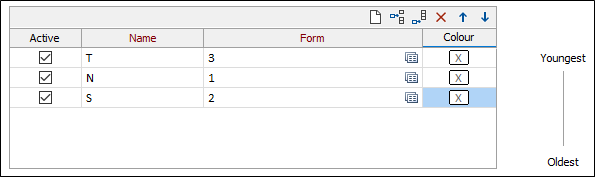

    The Faults options in the Geology form

  • And produce a full geological model as a result.
