Orientation Copy

On the Vein Intercepts tab, in the Edit group: In Oriented Discs mode, click Orientation Copy to make the orientation of selected intervals match the orientation of a specified interval.

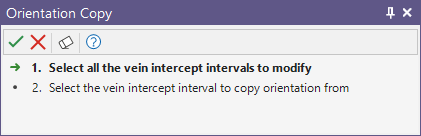

If you have not already selected any intervals, you will be prompted to do so by the Selection Assistant:

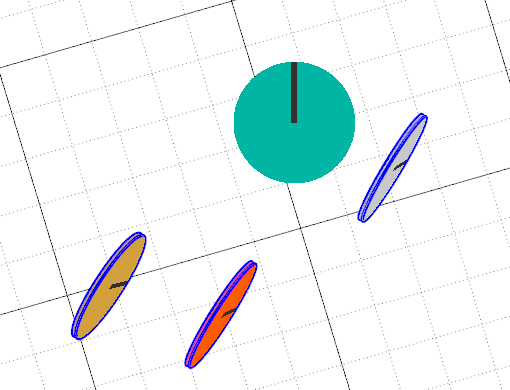

1. Select all the intervals you want to edit and click Select.

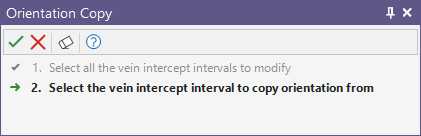

   The Selection Assistant will prompt you to select the interval with the orientation you want to copy.

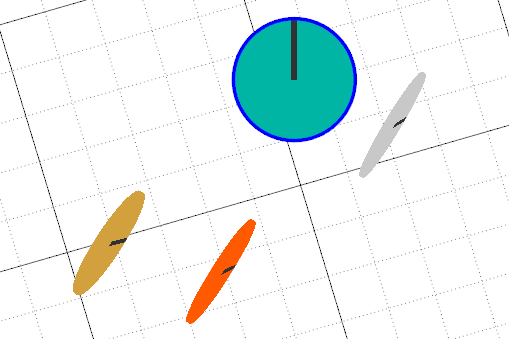

2. Select the interval and click Select.

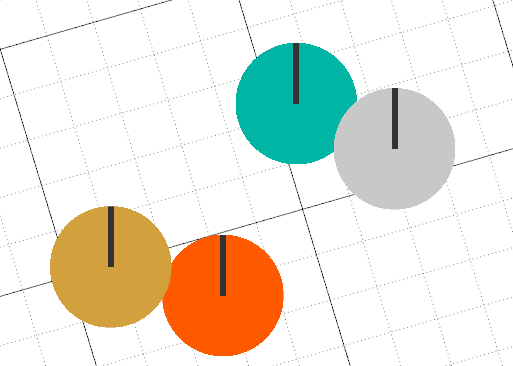

   The intervals selected first will change orientation to match the last selected interval:
