Orientation Drag

On the Vein Intercepts tab, in the Edit group: In Oriented Discs mode, click Orientation Drag to edit the orientation of any selected interval/s by dragging out the edge of the orientation plane.

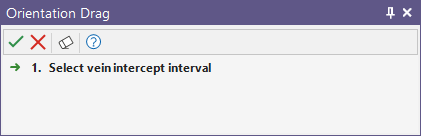

If you have not already selected an interval, you will be prompted to do so by the Selection Assistant:

1. Select the interval to drag and click Select.

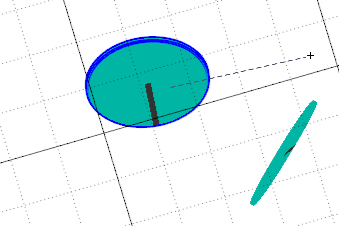

   The cursor will change to a plus and you can drag the interval as required:

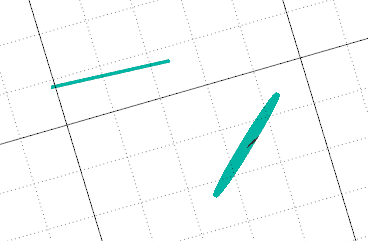

2. Release the mouse to change the orientation as configured:
