Overlay Previous and Next Rings

On the Mining | Edit Ring tab, in the Visualise group: Click Overlay Previous Ring or Overlay Next Ring, to toggle the display of the previous or next ring.



When the rings along a drive are aligned and parallel, it is useful to be able to use the previous or next ring as a guide while editing the current ring.

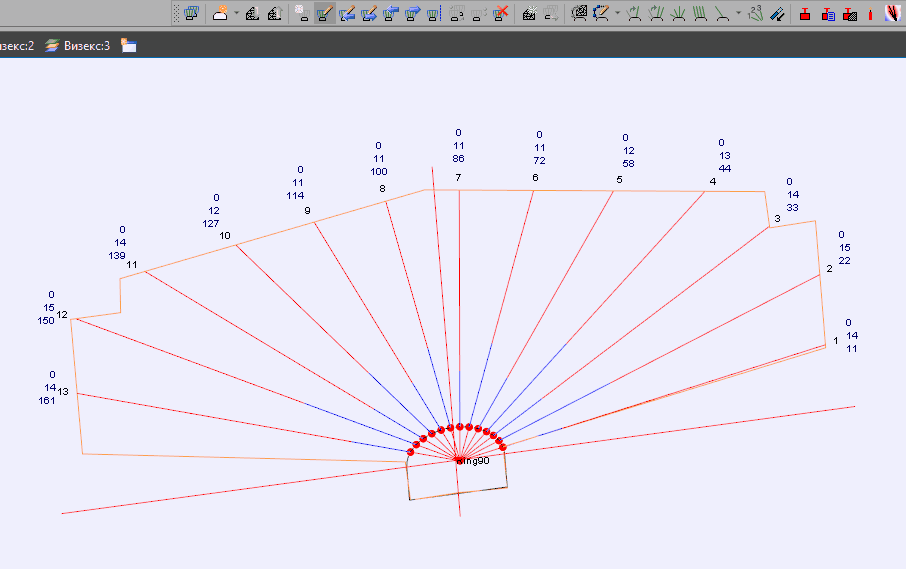

When these toggles are enabled, the previous and next rings are shown in shadow. Shadow towards and away sections are based on the chainage distance between the rings.
