Mirror Ring

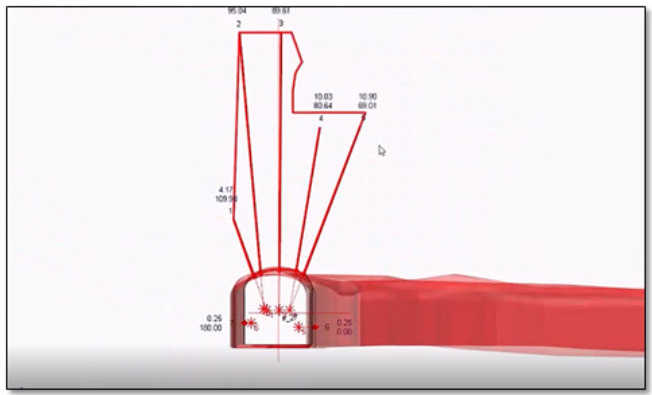

On the Mining | Edit Ring tab, in the Visualise group: Click Mirror Ring to mirror the current ring. You must be in Edit Ring mode to access this option.

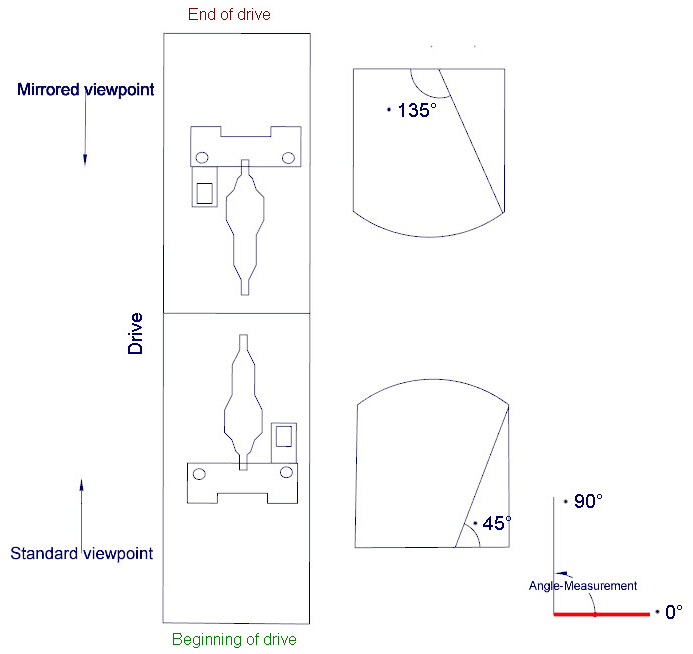

In a typical scenario, the drill rig faces the end of a drive when drilling. However, in some cases the rig may be turned around so that the rig is facing the beginning of the drive, for example, to prevent obstruction of loaders removing material from an adjacent drive.

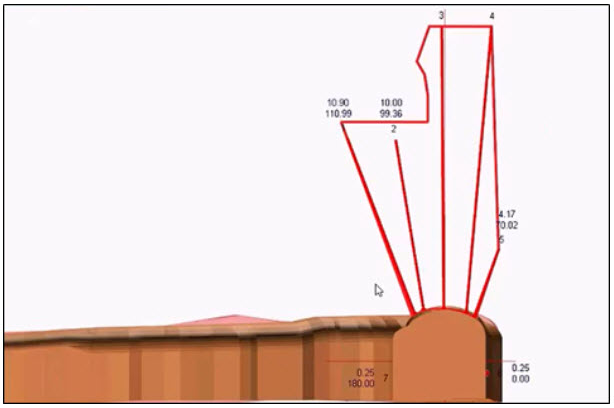

In such cases, the original profile of the ring is essentially mirrored.
