Variograms
The Variograms tab is used to select the variograms for Kriging operations across the configured domains.

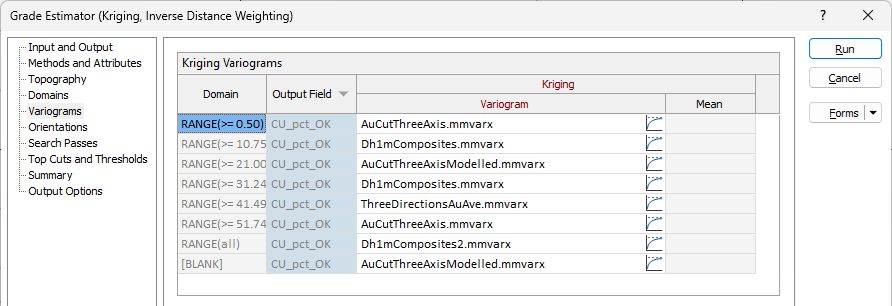

Each Kriging method configured in the Methods/Attributes tab will be listed in the Variograms grid with the details displayed in read-only mode. You can sort the Kriging Variograms grids by Output Field using the column label button to toggle sort direction.

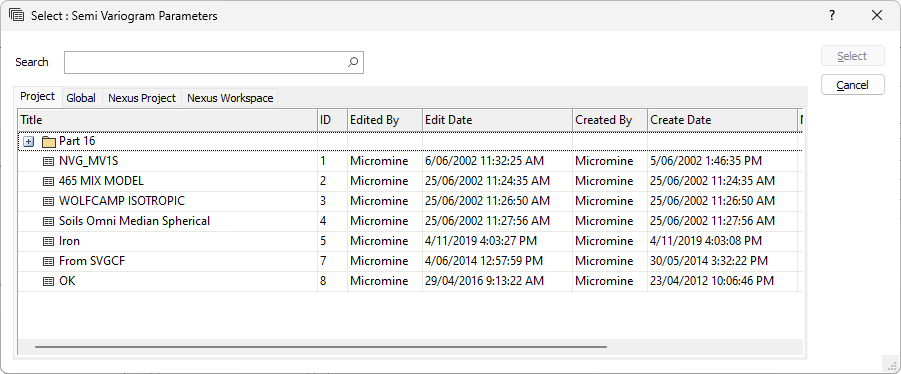

Double-click (F3) or use the icon in the Variogram field to select the variogram for the Kriging run.
Where the Kriging method for the Domain is Simple Kriging, you can enter the mean value for the variogram in the Mean field.

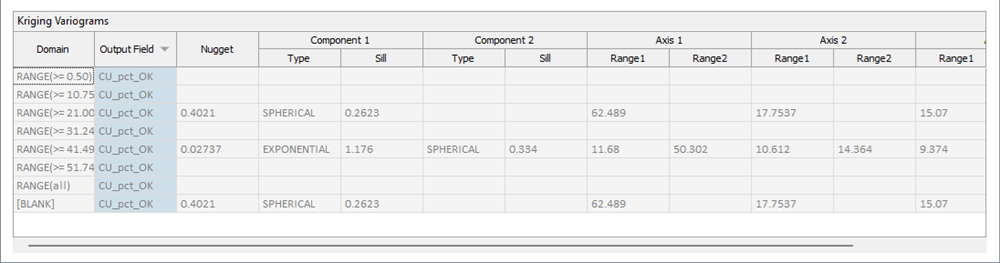

Details for the selected variograms are displayed in the Kriging Variograms read-only grid at the bottom of the tab:
Column widths in grids across the tabs of the Grade Estimator are resizable to allow custom layout of the information. You can revert any changes made to the column widths with the Reset Column Widths button in the toolbar.
