Variogram Inspector

On the Stats tab, in the Variography group: Select Variograms | MIK Variogram Inspector to compare and visually validate the variograms generated from an MIK (Multiple Indicator Kriging) Cutoff Set.

This option is also available from the Block Model tab in the Estimation group under Multiple Indicator Kriging | Variogram Inspector.

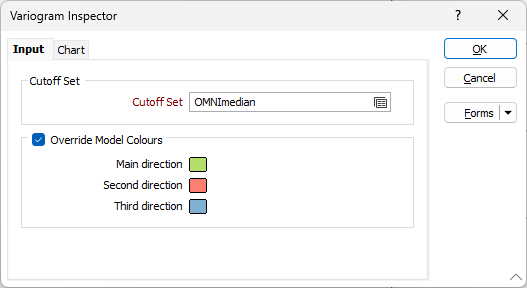

Cutoff Set

Double-click or click on the Forms icon, to load an MIK Cutoff Set.

MIK Cutoff Sets are generated using the Multiple Indicator Kriging | Generate Cutoffs function on the Block Model tab, in the Estimation group. See: Generate Cutoffs

Override Model Colours

For each search direction, double-click on the Colour button (or click and press F3) to open a colour palette to select from.

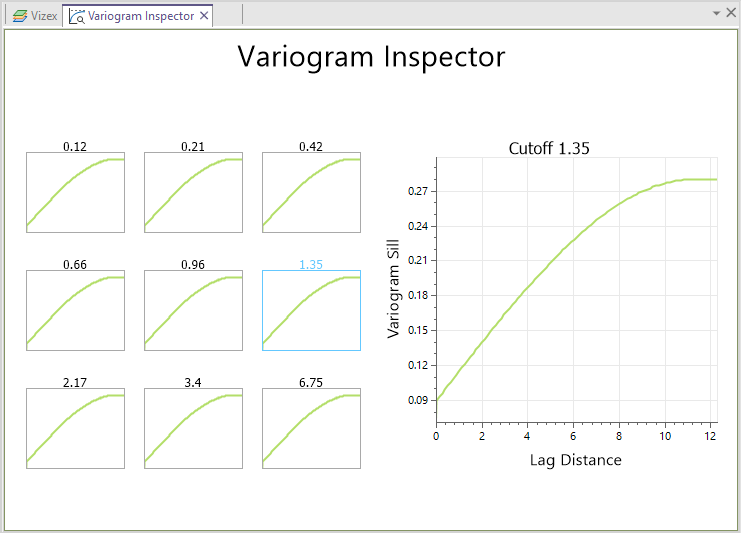

Variogram Sill and Lag Distance primary axes labels are shown on the main chart:

Chart
