Distance to Points

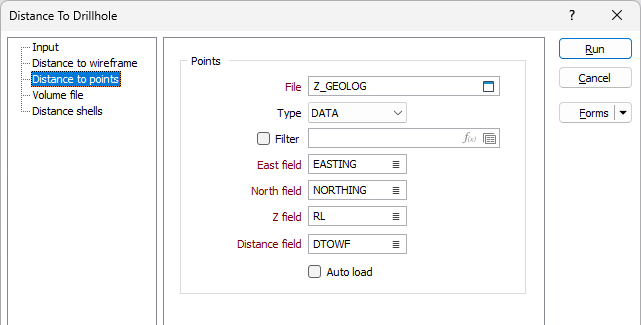

The Write distance to points option on the Input tab of the Distance to Drillhole form enables the Distance to points tab. Use the options in the tab to write the distance information to a specified attribute in a points file. .
File
Select the file type and double-click to select the file containing the points you want to use. If required, define a Filter to selectively control the records to be processed.
East and North and Z fields
Specify the names of the fields in which Easting, Northing, and Z coordinates are stored in the Points file.
Distance Field
From the Distance field control, select the field in the specified points file to which the distance data should be written.
Auto load
Select the Auto load option if you want the resulting points file with the distance information included to be automatically displayed in Vizex on creation.
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
Run
When you have specified inputs and outputs, click Run to begin the process.
