Viewport
The Animation tab's viewport provides an animated representation of the work in progress on your mine site. The user can select the levels to be displayed (mine / pit / stage / bench, etc.), switch to the display of dumps or open pits, view the fleet used and the haulage routes.
Activity Status
Hatchings are used to indicate the drilling and blasting status of the blocks.
Hatchings for untouched, drilled, and blasted shots
|
Blast State |
Hatching |
|---|---|
|
Not Drilled |
Striped hatching |
|
Drilling |
Grid hatching |
|
Blasted |
No hatching |
In addition, the grid hatching is colour-coded by activity.
|
Hole State |
Hole Colour |
|---|---|
|
Hole not drilled |
Clear |
|
Hole drilled |
White |
|
Hole charged |
Red |
The display settings for hole grids can be found in Setup > Production Mode Features > Feature Settings > Production Drilling.
Haul Routes
Haul routes for each digger are highlighted on the haul network.
Haul routes are highlighted in the Agent colour
Manage Viewports

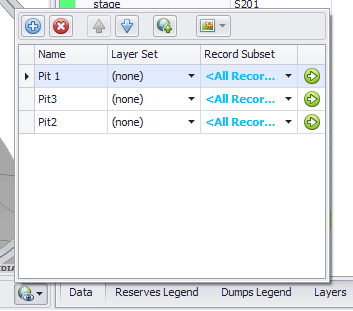

The Manage Viewports panel provides a quick way to update the Viewport location, layers, record subsets and legend setup.
