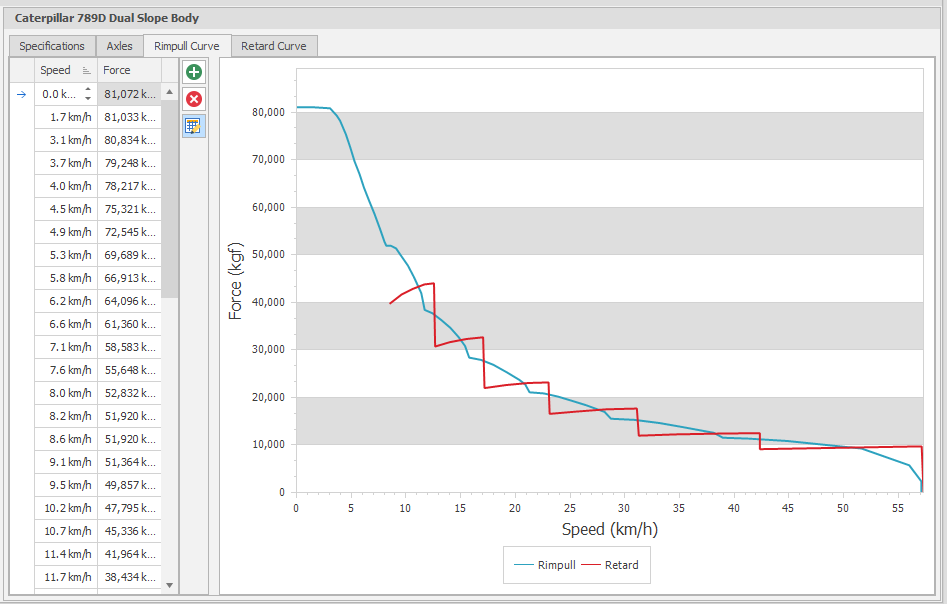

Rimpull Curve

Use the Rimpull Curve page of the Truck Settings window to determine the maximum speed attainable, gear range and available rimpull when machine weight and effective grade are known.

Rimpull is the force available between the tyre and the ground to propel the machine (limited by traction) and it is measured at the wheel so includes all transmission losses.

See: Speed Restrictions (Ramps)

	Add rimpull curve entry.
	Delete the currently selected rimpull curve entry.
	Edit the currently selected rimpull curve entry.
