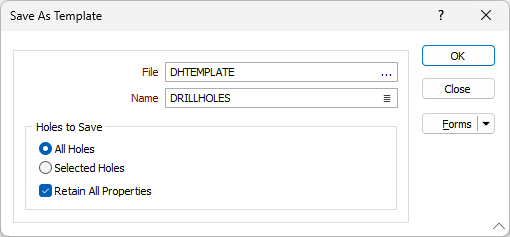

Save Template

On the Mining | Edit Ring tab, in the Template group: Click Save Template to save the drillholes in a ring to a (*.MMHDFTEMPLATE) template file.

File

Use the File field to navigate to the folder where you want to save the template file, or select a template file to overwrite.

Name

Use the selector to set the name of the existing template file, or enter a name in the field for a new file.

Holes To Save

All Holes

Select this radio button if you want all of the holes in the current ring design to be saved to the template file

Selected Holes

This radio button, when selected will save only the selected drillholes to the template file.

Retain All Properties

When this check box is selected, values entered in the Description or Notes field for example, will be retained. If this check box is unselected, only the properties associated with the ID (for example Number, Hole Type) and physical properties (Collar and Toe location, Length, Lookout) of the holes will be saved to the template.

OK

Click OK to save the template to the specified location.
