Drillhole Collection Imports Manager
The Drillhole Collection Imports manager provides functionality to view the data imported to the Micromine Geobank tables for each import, as well as Add and Delete collections.
To open the manager, in the Drillhole group on the Micromine Geobank Home ribbon,
-
Click Imports.

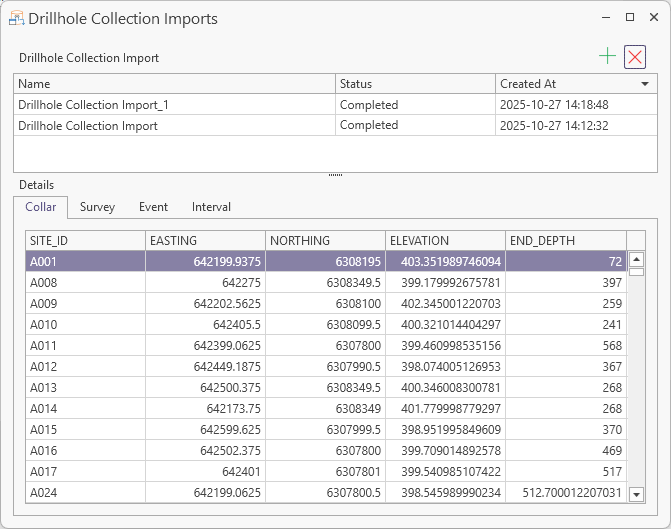

The Drillhole Collections Imports manager opens.
The Details grid contains tabs for the Collar, Survey, Event and Interval tables for the import. Selecting an import in the Drillhole Collection Import in the grid at the top of the dialog will display the data for each table in the corresponding tab - as shown for the Collar table above.
Any imports configured and not yet imported can be added to the Manager using the Add button.

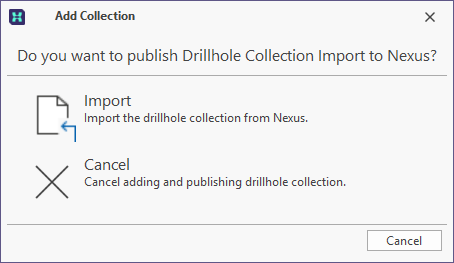

This will open the Add Collection prompt:
You can click the Import button to add the details of the import to the manager and populate the Details tab with the data from Nexus.

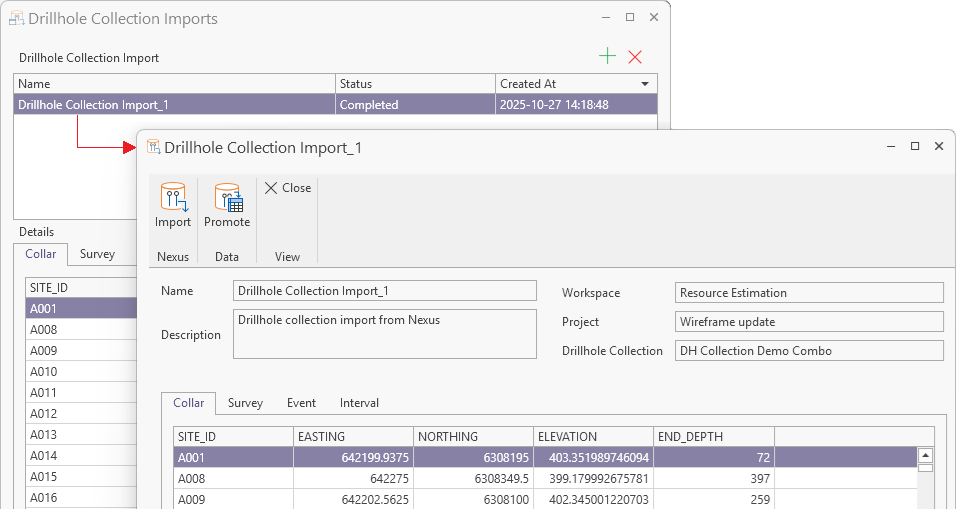

If you double click a Drillhole collection in the list, it will open in a new tab. You can click the Promote button to promote the data to the configured tables.
Selected collections can be deleted from the list using the Delete button at the top right.
Note: Successfully imported collections contain information on the entry in Nexus with which the drillhole collection is linked. Deleting imported entries will break the link with Nexus. If a user attempts to import a drillhole collection for the deleted entry, an error will occur. To import a deleted entry again, the entry must first be published to Nexus using the Drillhole Collection Export Manager.
For more information, see Execute: Drillhole Collection Export.
If you select a collection from the list and click Delete, a prompt will be displayed.
Clicking Yes in the prompt will delete the selected collection. If the publish action is currently running, it will be cancelled.
To close the Collections Manager,
-
Click the cross at the top right-hand corner of the tab or window.
For information on creating Datasets, see Drillhole Dataset.
For information on creating Drillhole Collection Imports, see Drillhole Collection Import.
For information on creating folders for your Drillhole Collections, see Folder.
