Substations

Overview

Substations are used to model power requirements around different areas of the mining operation.

Substation Setup Step

Adding Substations Manually

To add and remove substations manually use the blue plus and red cross buttons located on the top toolbar.

Adding Substations from Haul Infinity

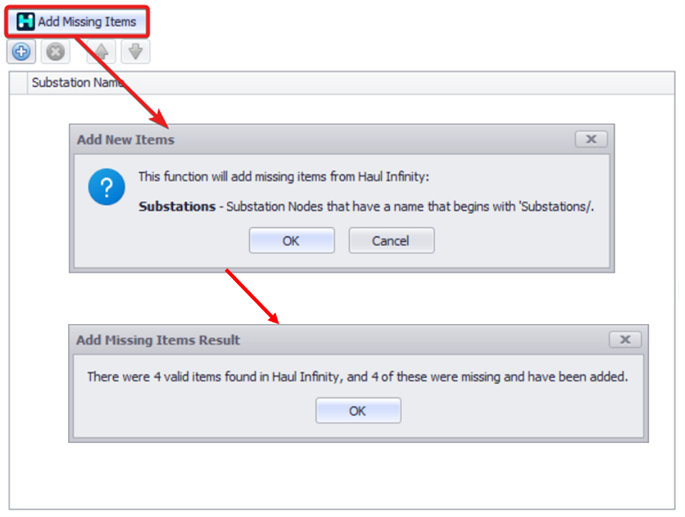

To add all or missing chargers from Haul Infinity, use the Add Missing Items button located in the top toolbar.

It will find all Substations nodes in Haul Infinity that have a name that begins with " Substations/' and populate the missing items to the Substation Name column.

Use Peak Power As Constraint

This will limit the number of electrical agents in an area based on the power required by the agents vs the power provided by the substation.
