Waste Dumps

Overview

Waste Dumps names and capacities are automatically detected from the reserve database. Tables marked as "Dumps" will automatically list their contents and appear in bold blue.

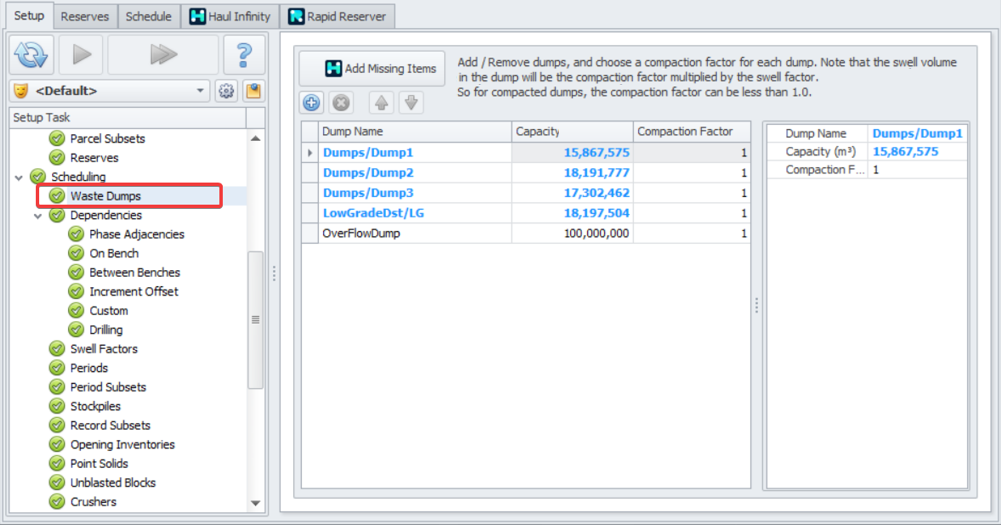

Schedule > Waste Dumps





Description

Example

Name

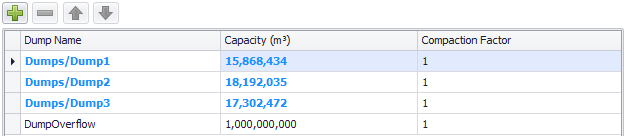

Automatically added dumps (with the table type "Dumps" in the Create Tables step) will be displayed in bold blue, and dumps added from Haul Infinity or manually will be displayed in normal black text.

Capacity

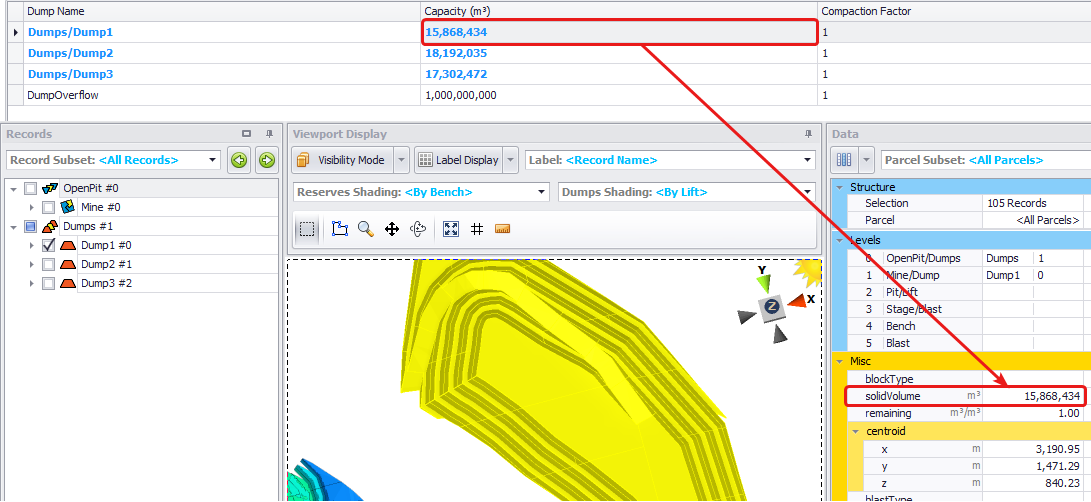

The capacity of dumps added from the database is filled in automatically and based on the dump solid volume. It should be the same as the solid volume specified in the Reserves tab/setup step.

The capacity of the dumps added as dump points must be specified manually, allowing for a larger capacity.

Compaction Factor

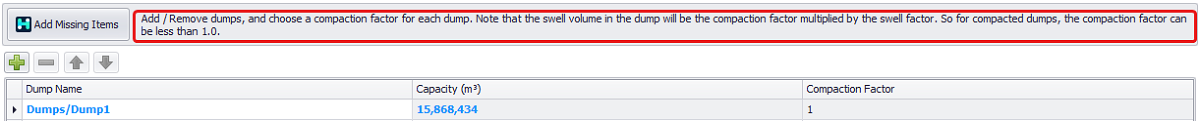

Swell volume in the dump will be the compaction factor multiplied by the swell factor. So for compacted dumps, the compaction factor can be less than 1.0.

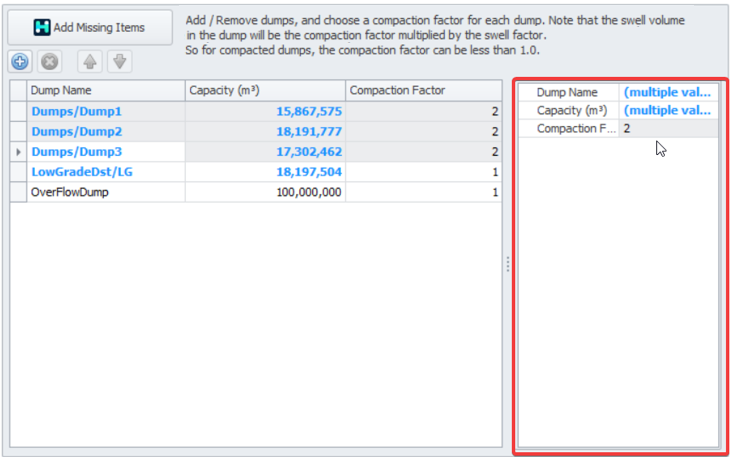

Right Panel

Selecting multiple dumps using Crtl or Shift allows for multiple dumps to be updated at once.

Adding point dumps

Haul Infinity Lift Entry nodes are treated as point dumps by the Scheduler. If you have any Lift Entries in Haul Infinity, you may add them to the Scheduler in this step.

Adding missing items from Haul Infinity

  1. In Haul Infinity > Network tab check for nodes promoted as Lift Entry.

  2. In ATS > Waste Dumps step press the Add Missing Items button.

  3. Click OK to add all the missing items from Haul Infinity.

  4. Added dump(s) will appear in the list.

    1. Specify Capacity and Compaction Factor, as required.

The node name in Haul Infinity must follow the convention Dumps/<myDumpName>. Otherwise it won’t be recognised and imported.

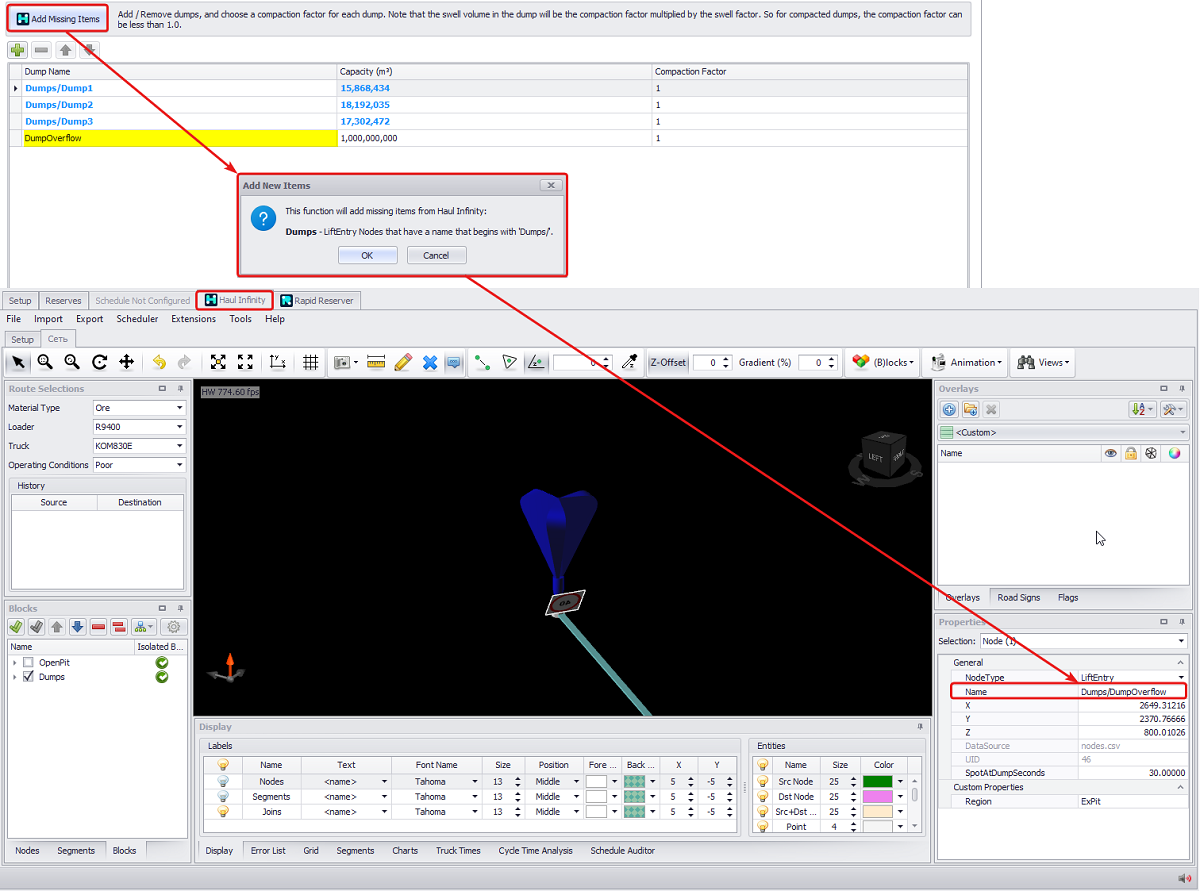

Adding point dumps from Haul Infinity

Adding missing items manually

  1. In Haul Infinity > Network tab check for nodes promoted as Lift Entry.

  2. In ATS > Waste Dumps step press the green plus button.

  3. Rename the dump as per the node name in Haul Infinity.

    1. Specify Capacity and Compaction Factor, as required.

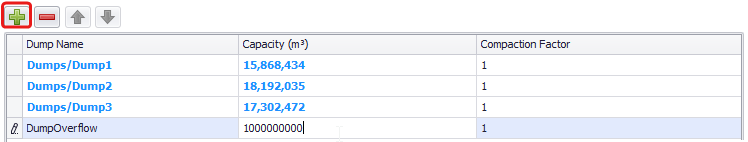

Adding point dump manually
