Setting Up the Equipment Health Profile

The EquipmentHealthProfiles you create can be assigned to mobile units via the MobileUnitConfiguration. To create an EquipmentHealthProfile, in Reference Edit,

  1. Select Configuration Items | Mobile Settings | EquipmentHealthProfile.

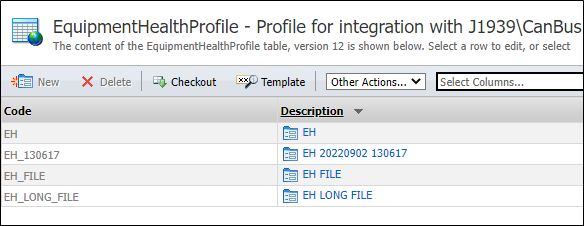

    The EquipmentHealthProfile page opens, with the configured profiles displayed.

To create a new profile,

  1. Checkout the table and click New.

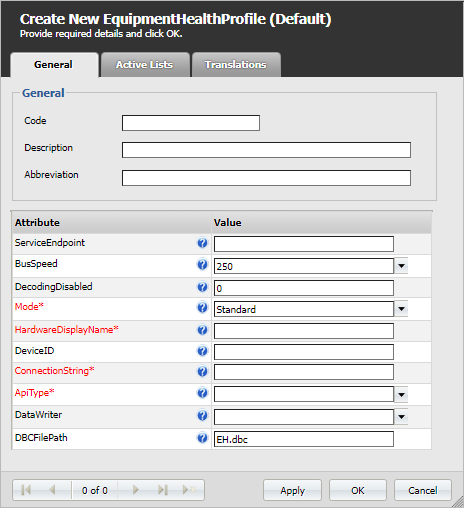

The Equipment Health Profile contains the following attributes:

Attribute Name Description
ServiceEndpoint* Equipment Health service address in format IP:port. If not set - readings will not be stored and sent to service.

*In Pitram version 10.0, ServiceEndpoint is no longer used to set the EHS service address on the Mobile Unit. See section: General Services Configuration. This attribute may continue to be displayed in Reference Data if Asset Health was set up in v9.0.
BusSpeed Different models of equipment have a different connection BusSpeed. Values in the drop down are in Kb per second.
DecodingDisabled If set, the device will receive messages and write them to a dump file without any further processing of data.
Mode The mode of the Equipment Health device. There are two modes:

  • Standard - If set, Asset Health Reading Definition configuration is used. Only messages defined in Asset Health are processed. In this mode, the DbcFilePath attribute value is ignored and the DBC configuration stored in the local database is used.
  • Detection -This mode is used to detect messages generated by equipment during the phase of initial configuration. No messages are sent to Asset Health on the server side.
    • If DbcFilePath is blank, read the DBC configuration from the database (as in Standard mode) but read everything (not just what has been configured in Asset Health readings)
    • If DbcFilePath is not blank, then read configuration from the file
HardwareDisplayName Name of hardware to be displayed in UI to the user
DeviceID The ID for the device on the CanBus. Usually this value is between 40 and 250. For Pitram, it is preferably 99.

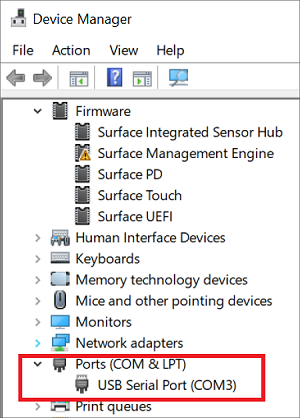

ConnectionString Address how to connect to Equipment Health. For TREK it is “COM9”. For Motium is “1“. Version 10 introduces a new ApiType called USB. When this option is chosen, the connection string should be the COM port found in the Device Manager on the Mobile device when the CAN bus USB is connected to the mobile.

APIType The type of the connection to Equipment Health. There are five types of the connection:
  • TREK - used for TREK tablets
  • Motium - Used for Motium tablets
  • Raw - This connection type is currently not implemented.
  • FileImport - Used in diagnostics only to replay a dump file. The ConnectionString attribute is a full path to dump file.
  • UDPSocket - Used in diagnostics only to receive data via a UDP socket. The ConnectionString attribute is “9001 9002 127.0.0.1”.
  • USB - Used for CAN Bus over the USB/CAN converter
DataWriter Format used for storing dump data. Binary is the default. The following types are supported:
  • Binary - This format should be used for production after initial testing. It saves disk space.
  • MDF4 - This format supports compression, reducing file size.
  • SocketCan - This format consumes a lot of disk space but is human readable.
  • None - Raw data logging is disabled.
DBCFilePath Used only if Mode=Detection. It defines the path to *.dbc files with decoding rules. Use a semicolon as a separator to define multiple files.

Note: Before Pitram 13.0, the EquipmentHealth profile does not have the Mode attribute. For users updating from 8.0 to 13.0, please check CAN SKZ Mobile Configuration for more details.

  1. Click OK to save the new Profile.

    With the profile created, you can assign it to the configuration for a mobile unit.

See: Mobile Unit Configuration.
