Vertical for Analysis Case

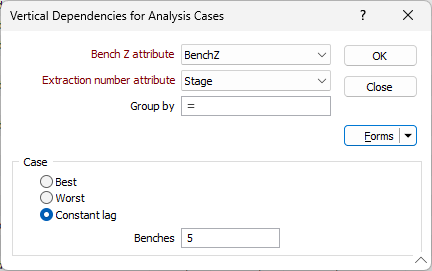

On вкладке Планирование | Вид, в группе Интерактивные зависимости: Select Vertical | For Analysis Case to build vertical dependencies between bench solids for a simple analysis case using the Pit Shell Number, Bench Z and an optional Pit Identifier as inputs.

Bench Z Attribute

Select the attribute which contains the Z level of each bench.

Extraction number attribute

Укажите имя атрибута, содержащего номера извлечений. Номера извлечений — это уникальные номера, присваиваемые идентифицируемым «извлечениям», частью которых является блок.

Group by

If multiple pits are being processed, an expression can be used, for example, to identify the pits in which the mining blocks are located.

If the expression field is blank, dependencies are built for a single group consisting of all tasks. If an expression is specified, the expression is evaluated for each task, and tasks are grouped accordingly. Different Block Size parameters can then be set for each group.

Case

Open pit analysis is the analysis of the ore reserves, waste tonnage, metal production and cash flows for the pit shell, or nested pit shells. The values of the ore reserves in the pit shell, or in each nested pit shell, are calculated using fixed element prices. Best case, worst case, or constant lag scenarios may be analysed.

For more information, see: Анализ оптимального карьера

Вертикально по индексу
