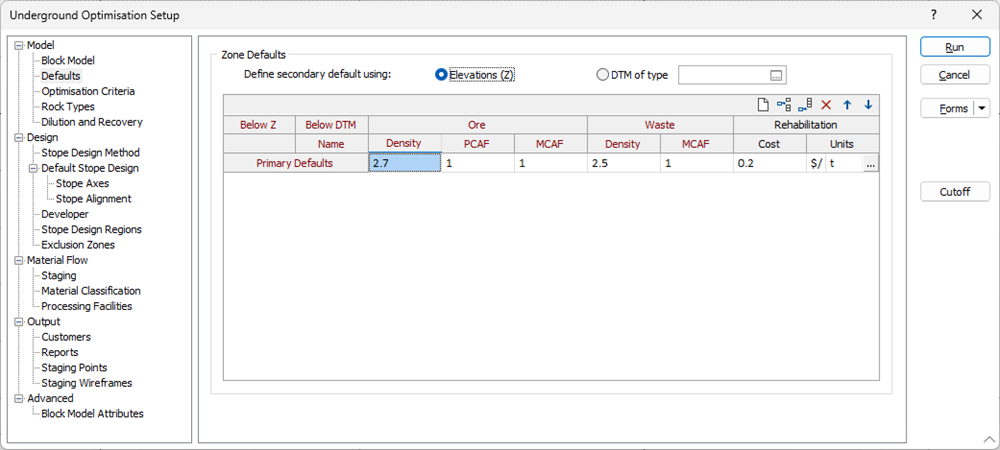

Defaults
Use the Model > Defaults tab to specify the densities, cost adjustment factors and rehabilitation costs that apply when values are not specified for blocks - either because a suitable source field is not available, or a value is not specified in that source field for the block.
Specify the primary default values in the first row of the grid list and override them with “secondary” values by (i) elevation (Z) or (ii) digital terrain model (DTM) as appropriate by adding rows to the grid list.
(Define secondary default using) Elevations (Z)
Select to specify secondary default values below specified elevations (Z).
Selection enables the Below Z column and disables the Below DTM column in the grid list.
(Define secondary default using) DTM of type
Select to specify secondary default values below digital terrain models (DTM) and select the type of DTMs to be used to define the boundary surfaces.
Selection with a valid type enables the Below DTM column and disables the Below Z column in the grid list.
Below Z
(Elevations (Z) only.) Specify the elevation (Z) value below which the specified secondary default values apply.
Below DTM
(DTM of type only.) Select the digital terrain model (DTM) to be used to define the surface below which the specified secondary default values apply.
Ore Density
Specify the default value for the density of ore below the specified surface.
Ore PCAF
Specify the default value for the Processing Cost Adjustment Factor (PCAF) for ore below the specified surface.
Ore MCAF
Specify the default value for the Mining Cost Adjustment Factor (MCAF) for ore below the specified surface.
Waste Density
Specify the default value for the density of waste below the specified surface.
Waste MCAF
Specify the default value for the Mining Cost Adjustment Factor (MCAF) for waste below the specified surface.
Rehabilitation Cost
Specify the cost per mass or volume of rehabilitating material from blocks that are mined and dumped as waste.
Rehabilitation Cost Units
Выберите единицы, к которым относится стоимость затрат на рекультивацию. Нажмите на многоточие, чтобы выбрать единицу измерения объема, массы или пользовательскую единицу измерения.
Если вы выберете Пользовательский, для определения значения единицы измерения можно использовать выражение.
Densities and Tonnage Factors
For block dimensions specified in metres (m), Densities must be expressed in tonnes per cubic metre (t/m3). Specific gravity values are suitable for this purpose.
Факторы тоннажа необходимо определять в единицах, соответствующих тем единицам, которые используются для указания измерений блоков в модели. No additional unit conversions are performed by the Optimiser.
1 фут = 0,3048 метра, 1 фунт = 0,45359237 килограмма, 1 коротка тонна = 2000 фунтов; Факторы тоннажа, выраженные в кубических футах на короткую тонну (фт3/короткая тонна) можно преобразовать в кубические метры на тонну (м3/т) умножением на 0,03121398, либо в кубические футы на тонну (фт3/т) умножением на 1,10231131.
