Copy/Move

On the Wireframe tab, in the Manage group: Select Wireframe | Manage Wireframes | Copy to create a copy of a wireframe.

If the source wireframe and the target wireframe are of a different type, the function will copy all standard properties of the source wireframe and then try to match as many user attributes as possible. The option to create missing attributes is provided (see below).

You can also copy a wireframe within the same type (in other words, when the Source and Destination wireframes are the same).

Source Wireframe

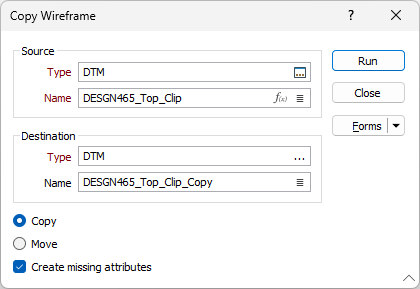

In the Copy Wireframe form, specify the type and name of the Source wireframe.

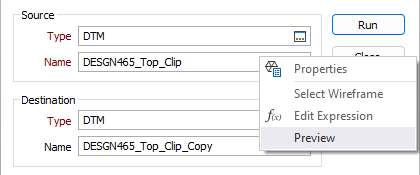

Expressions, wildcards and partial names may be used in the Name field to select multiple wireframes. A right-click Preview option will perform a check of an expression before using that expression to generate an updated list of wireframes.

Destination Wireframe

Specify the type and name of the Destination wireframe. If you enter a type name that does not exist, you will be asked if you want to create a new type.

Copy/Move

By default a copy of the Source wireframe is added to the Destination TRIDB file.

The option to move the Source wireframe (by deleting it from the source TRIDB file after it has been copied to its destination) is also available.

Create missing attributes

If the source wireframe and the target wireframe are of a different type, the function will copy (or move) all standard properties of the source wireframe and try to match as many user attributes as possible.

To create user attributes that are missing in the target wireframe, this check box is selected by default:

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Finally, click Run to begin the process.
