Create Custom Labels

In the Reserves tab in the Viewport Display panel locate Labels field and press its drop-down; there is a preloaded list of automatic labels for the level hierarchy and reserves fields. We can add to this list by configuring custom labels.

Adding Custom Label

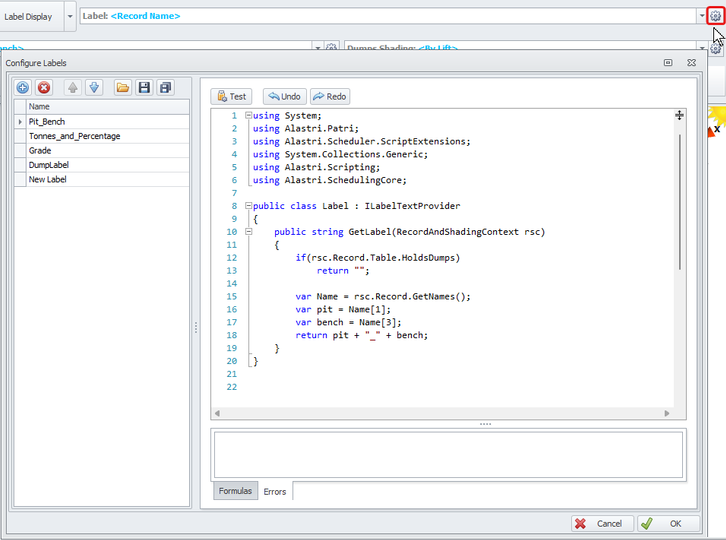

Click the gear icon to the right of the Label drop-down.
Click the blue plus icon to add a new label.
Rename the label to "Record".
Paste the sample formula into the code editor.
Double click in the Available Formulas for code hints.
Click OK to finish.

Custom ID

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
using System;
using Alastri.Patri;
using Alastri.Scheduler.ScriptExtensions;
using System.Collections.Generic;
using Alastri.Scripting;
using Alastri.SchedulingCore;

public class Label : ILabelTextProvider
{
    public string GetLabel(RecordAndShadingContext rsc)
    {
        var name = rsc.Record.GetNames();

         var mine = name[1];
        var pit  = name[2];
        var stage = name[3];
        var bench = name[4];
        var blast = name[5];

        return "Id: " + mine + "_" + pit + "_" +  stage + "_" +  bench + "_" +  blast;
    }
}

Pit_Bench

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
using System;
using Alastri.Patri;
using Alastri.Scheduler.ScriptExtensions;
using System.Collections.Generic;
using Alastri.Scripting;
using Alastri.SchedulingCore;

public class Label : ILabelTextProvider
{
    public string GetLabel(RecordAndShadingContext rsc)
    {
        if(rsc.Record.Table.HoldsDumps)
            return "";

        var Name = rsc.Record.GetNames();
        var pit = Name[1];
        var bench = Name[3];
        return pit + "_" + bench;
    }
}

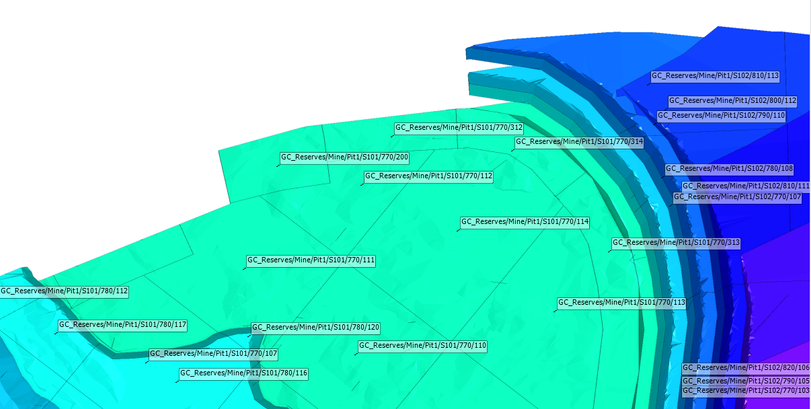

GC

Copy

using System;
using Alastri.Patri;
using Alastri.Scheduler.ScriptExtensions;
using System.Collections.Generic;
using Alastri.Scripting;
using Alastri.SchedulingCore;

public class Label : ILabelTextProvider
{
    public string GetLabel(RecordAndShadingContext rsc)
    {
        PatriRecord record = rsc.Record;
        if(record.Table.HoldsDumps || !record.IsLeaf)
            return "";

        PatriRowField dataSourceField = rsc.Record.Database.FindRow<PatriRowField>("misc_dataSource");
        string dataSource = record.GetStringValue(dataSourceField.Field);

        bool isGradeControl = !dataSource.Equals("BlockModel");

              if (isGradeControl)
        {
            return $"GC_{record.GetFullName()}";
        }
        return record.GetFullName();
    }
}

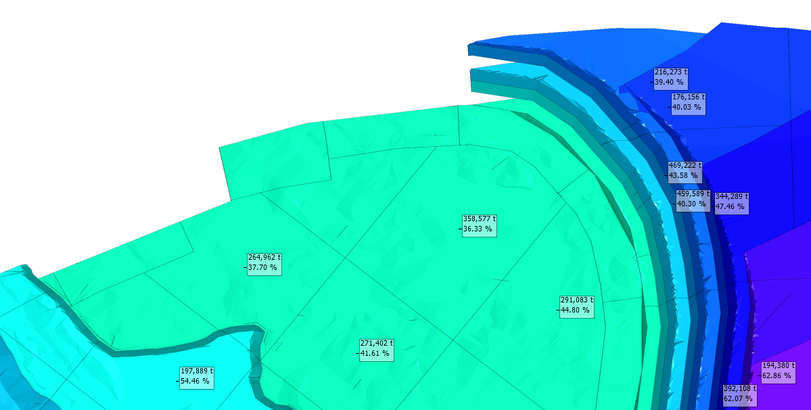

Tonnes and %

Copy

using System;
using Alastri.Patri;
using Alastri.SchedulingCore;
using Alastri.Scheduler.ScriptExtensions;
using System.Collections.Generic;
using Alastri.Scripting;

public class Label : ILabelTextProvider
{

    PatriRowField _volume;
    PatriRowField _dryTonnes;
    PatriRowField _fe;


    public string GetLabel(RecordAndShadingContext rsc)
    {
        _volume = rsc.Record.Database.FindRow<PatriRowField> ("Mining_volume");
        _dryTonnes = rsc.Record.Database.FindRow<PatriRowField> ("Mining_dryTonnes");
        _fe = rsc.Record.Database.FindRow<PatriRowField> ("Mining_grades_fe");


        double volume = rsc.Record.GetDoubleValue(_volume.Field, (IParcelSubset) null);
        double dryTonnes = rsc.Record.GetDoubleValue(_dryTonnes.Field, (IParcelSubset) null);
        double fe = rsc.Record.GetDoubleValue(_fe.Field, (IParcelSubset) null);

        if (volume > 50000)
        {
        return     dryTonnes.ToString("###,0") + " t" +  "\n" +
            fe.ToString("###,0.00") + " %";
        }
        return"";

    }
}

Grades

Copy

using System;
using Alastri.Patri;
using Alastri.Scheduler.ScriptExtensions;
using System.Collections.Generic;
using Alastri.Scripting;
using Alastri.SchedulingCore;



public class Label : ILabelTextProvider

{
    PatriField fe;
    PatriField si;

    public string GetLabel(RecordAndShadingContext rsc)
    {

        fe ??= rsc.ShadingContext.Database.FindField("grades_fe");
        si ??= rsc.ShadingContext.Database.FindField("grades_si");

        return "Fe: " + rsc.Record.GetDoubleValue(fe, ParcelAll.Default).ToString("#,##0.00") + "%" + "\n" +
        "Si: " + rsc.Record.GetDoubleValue(si, ParcelAll.Default).ToString("#,##0.00") + "%" ;


    }
}

One Name Label per Dump

Copy

using System;
using Alastri.Patri;
using Alastri.Scheduler.ScriptExtensions;
using System.Collections.Generic;
using Alastri.Scripting;
using Alastri.SchedulingCore;

public class Label : ILabelTextProvider
{
    public string GetLabel(RecordAndShadingContext rsc)
    {
        string dumplabellocation = rsc.Record.GetStringValue(rsc.Record.Database.FindField("misc_DumpLabelLocation"));
        if(rsc.Record.Table.HoldsDumps && dumplabellocation == "True")
        {
        var Name = rsc.Record.GetNames();
        var Dump = Name[1];
        var Lift = Name[2];
        return Dump;
        }
        else
        {
        return "";
        }
    }
}

Note, that this label requires some configuration n RR and mappings:

RR > Setup > Blast Properties > create a new property (“DumpName” for example) of a Choice type.
1. Input Comma Separated Choices: True,False.
2. Select “False” as a Default Value.
RR > Designer > select one lift of each dump > pick one random block and change the new property to true.
ATS > Setup > Misc Fields > create a field and give it a name to be used later in your label script (e.g., DumpLabelLocation).
ATS > Setup > Map Fields > map this Misc Field to the blast property created in RR.
ATS > Reserves > create a new label and copy the label code provided above.
