Create All Closed Volumes

On the Triangulation tab, in the Split/Merge group: Click Create All Closed Volumes to create all of the enclosed volumes produced from a set of intersecting triangulations. (Ctrl+Q,N)

Do the following:

1. Select the Source of the data that will be used as input to the function:

   Selection	Design elements you have interactively selected in the Design Window.
   Visible	Design elements that are visible in the loaded layer. Elements that have been specifically hidden are excluded. This a quick way of selecting all visible elements in a layer without having to explicitly select them.
   Layer	One or more layers that you select. Names of layers currently loaded in the Design Window are shown in bold.

   For large datasets, for performance reasons you may prefer to select a layer rather than load that layer and select all of the elements in the layer.

   Selecting a non-applicable layer will have no effect. In most cases, an error icon will indicate that the chosen input layer is not valid. Hover over the icon to view a validation hint.

2. Use the drop-down to select an Output Layer.

   Tip: In the Layer Selection pane, you can right-click on the Layers node (or a folder) to Add a new layer.

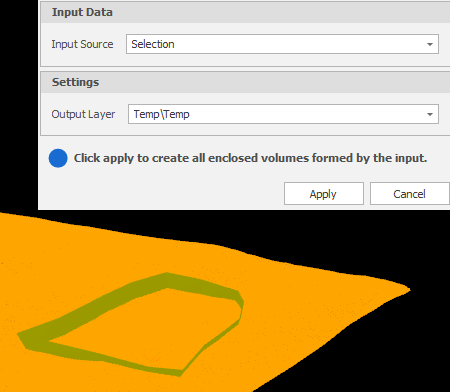

3. Click Apply to create all closed volumes. For example, a pit shell and a surface are selected as the input data:

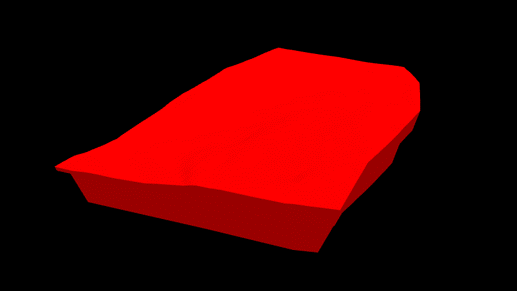

   A pit solid is created from the volume enclosed by the selected pit shell and the surface:



See also: Create All Closed Areas
