Pit Roads
Whether to display the Entry Point used as a handle to interactively move roads and whether to fill polygons, along with the applicable parameters are configured on the Pit Design | Setup | Pit Roads tab.
Entry Point
The Entry Point options are used to configure the display of the point used as a handle to interactively move roads.
-
Select the Show always option to always display the road point as configured with the symbol and display colour.
-
If you select Show for selected, the road point will only be displayed when a road is selected. Colour configuration will be overridden by Vizex selection settings in this instance.
Symbol
Double click in the Symbol cell to select a symbol to be used for the displayed road point:
From the Select Symbol form, the symbol can be selected and formatted with Border, Style, Size and Rotation settings.
Default Colour

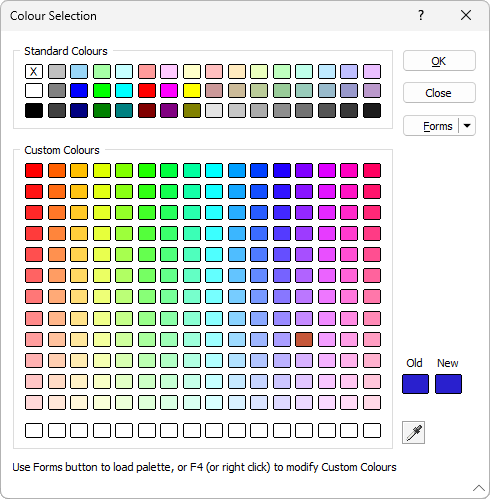

Double click the Default Colour cell to select a default colour for the road point from the Colour Selection form:
