Merge Blocks

On the Mining | Blast Design tab, in the Drillhole Pattern group: Select Merge Rows | Merge Blocks to merge one or more blocks with an entry block.

The rows in the blocks can be merged manually or be merged automatically by selecting an option on the form.

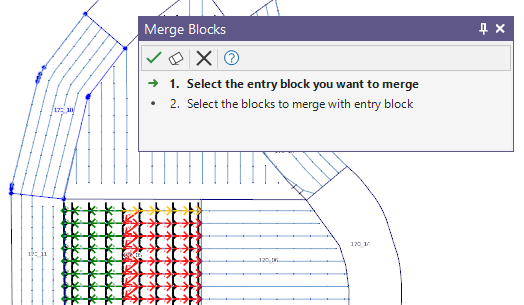

1. Select the entry block you want to merge:

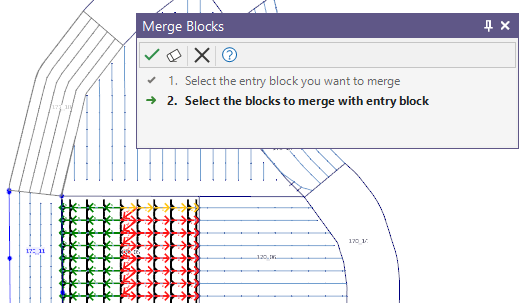

2. Select the blocks to merge with the entry block (use the CTRL key with the mouse to select multiple blocks):



3. In the Merge Blocks form, enter a new name for the merged block.

   The name of the entry block is offered as the default name, which you can adjust to indicate that the block has been merged:



4. (Optional) Select the auto merge rows check box to also merge the rows within the selected blocks.

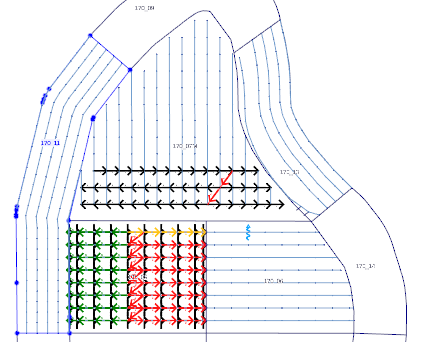

5. Click Run to merge the blocks (and rows):
