Output

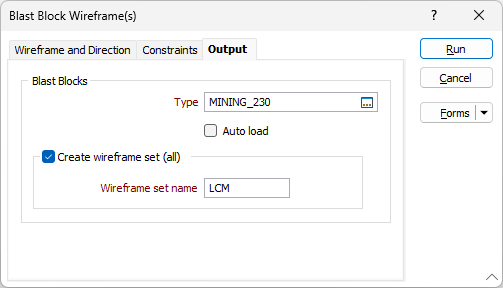

On the Output tab of the Blast Block Wireframes form, specify the type of the generated block wireframes. The names of the block polygons in the database are used as the names of the block wireframes.

Blast Blocks

Type

Select one of the wireframe types in the current project by double-clicking in the Type input box. A wireframe type is a name used to categorise wireframe. All wireframes are the same no matter what their type - collections of triangles, attributes and metadata.

Auto load

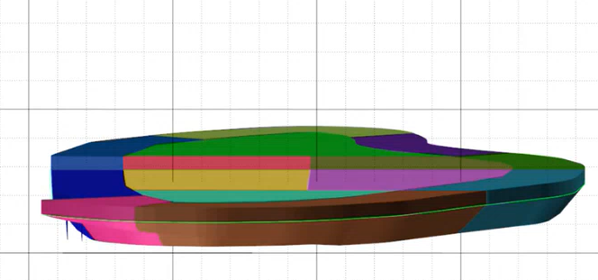

Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.

Create wireframe set (all)

Select this check box to create a wireframe set that comprises the generated block wireframes. Specify a Name for the set.

Saving the result of the process as a wireframe set gives you more flexibility. For example, you can apply a filter to the wireframes in the set.

When you click Run the wireframes are generated. The attributes from the blocks are copied to the wireframes.
