Scenarios Panel

The Scenarios Panel is located at the top of the Schedule tab. Here you can manage scenarios and toggle between them.

In the left part of the panel, you can add, delete, and move scenarios up and down.
By clicking on the eye icon in the Visible column, you can toggle the visibility of the selected scenario.
Type in the meaningful name for each scenario.
In the dropdown colors dialog (the Color column) you can set any color for the scenario bar, as well as adjust the brightness and opacity.
Toggling the circle in the Locked column locks / unlocks the ability to make changes to the input data. Fields of the locked scenarios will appear hatched.
Select a scenario and press the blue plus button add a copy of this scenario.
Toggle between scenarios in the right or left panels to switch to one of them.
In the right panel, scroll the mouse wheel to zoom in/out scenarios periods.
1. Alternatively use the Sync and Zoom All buttons.
Right click on the period of one of the scenarios and select Copy <…> and Split Here to copy the selected scenario and split it at the given period.
Right click on the period of one of the scenarios and select Run <…> Through Period #… to run the selected scenario only to the selected period.

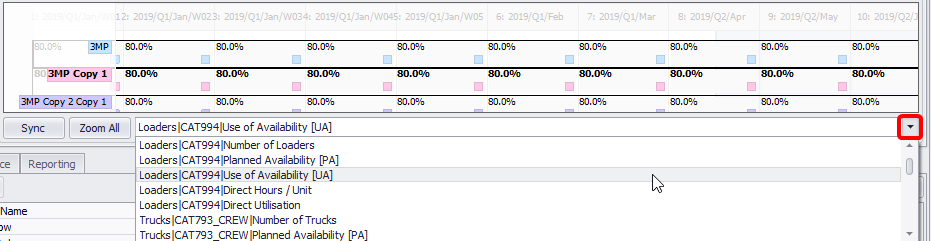

Select one of the available Calendar fields from the dropdown to display that value in the scenarios bar.

Play the video to learn how to navigate the Scenarios panel:

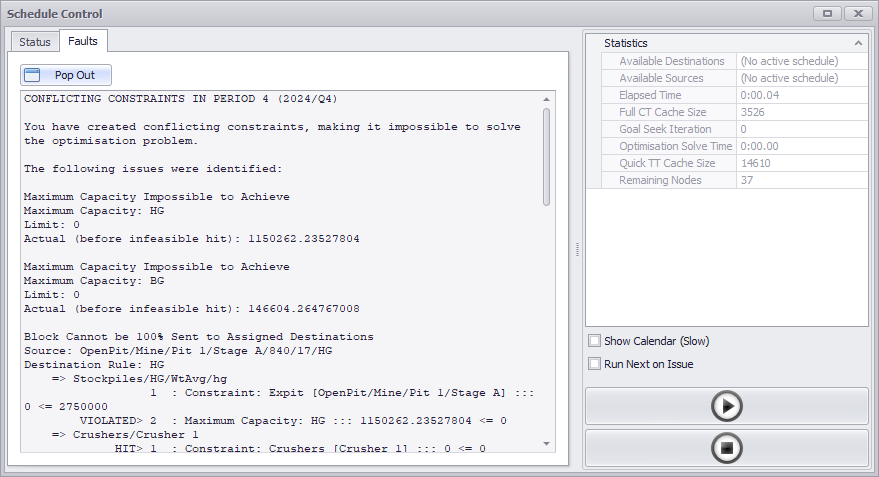

Use the buttons below to run the schedule/scenario/period after making changes to the model setup or in the Calendar inputs:

	Click to Run one single period, or press the <F9> key.
	Click to Run the scenario.
	Click to Run the full schedule.

In the scenario charts area, you can view the progress of the scenarios by period.

To change the items displayed in the scenarios area, click on the drop-down list on the right of the panel and select the required one.
