Fields

In the Setup Task > Reserve Database > Data Fields > Fields step, manage field collections for Mining, Drilling and Miscellaneous fields.

To display fields specific to different activities, switch between the collections in the Field Collection list:

• Mining Fields

  Mining material properties such as density, moisture, tonnes and grades. Can also include material properties that are measured at every processing path, point and product. For more information, see: Mining Fields

• Drilling Fields

  Hole properties such as length, volume, etc. For more information, see: Drilling Fields

  Note that Drilling Fields are only included in the Fields step if the Schedule Drills flag is enabled in the Configuration Options step.

• Misc Fields

  Block properties such as location, volume, depletion, etc. For more information, see: Misc Fields

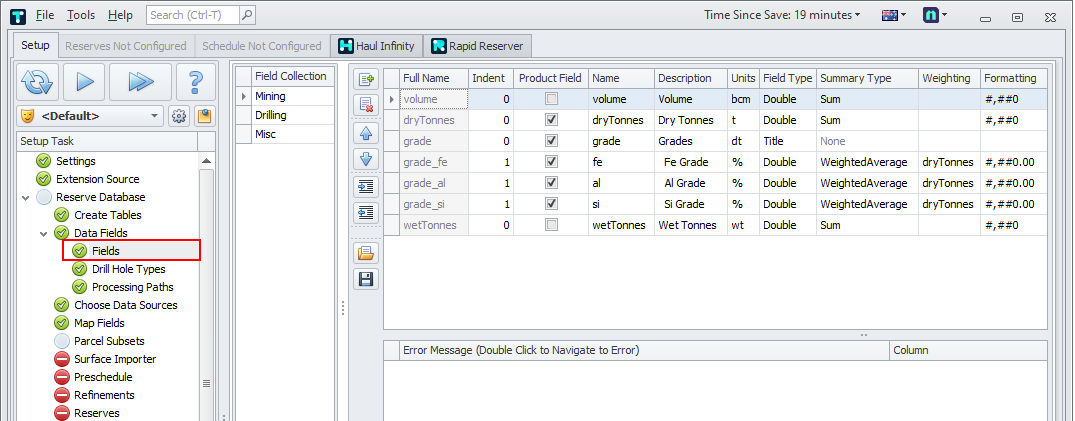

Fields setup

Fields created in the Data Fields block will be displayed in the Data panel (common for multiple steps and tabs).

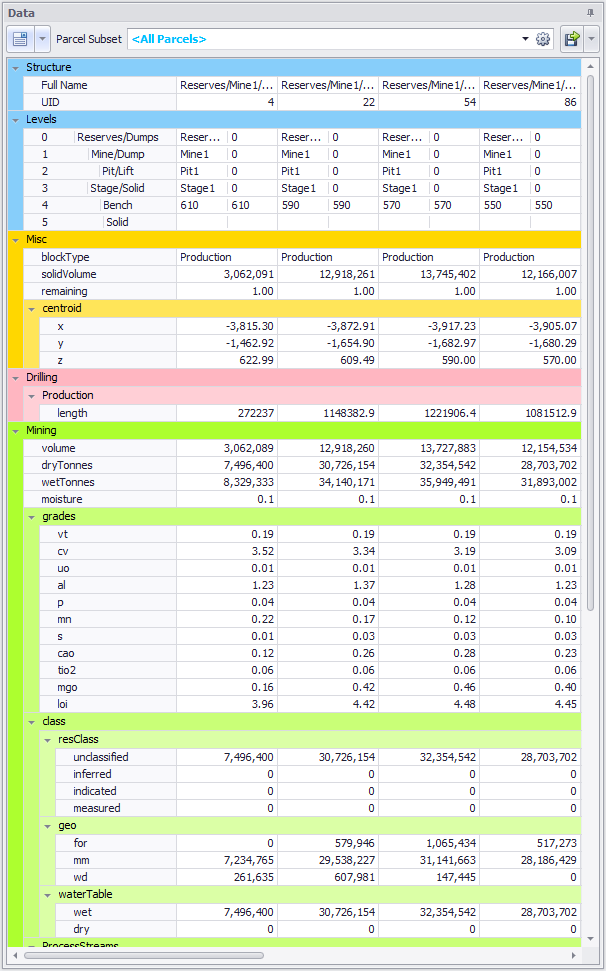

Example layout of Misc, Drilling and Mining fields in the reserves.

Field Properties

Each field has a number of properties associated with it.

Header Field	Usage
Full Name	Full address of the field, including parent Title fields (ie. class_waterTable_wet).
Indent	An indented field becomes a child of the Title field above it.
Product Field	A measure of product value such as tonnes, grades, and class.
Name	The name of the field that will appear in the reserves tables.
Description	A description of the field.
Units	Unit of measurement.
Field Type	Fields can be Title, Text, or Double (numeric). Indented fields must have a Title field as a parent.
Summary Type	When aggregating records, use Sum, WeightedAverage, Minimum, Maximum, or None.
Weighting	For weighted averages, use the weighting dropdown to reference another field.
Formatting	Choose how numeric fields are displayed.
