Mining Fields
The default Mining Fields specified in the Setup Task > Reserve Database > Data Fields > Fields step are volume, dry tonnes, wet tonnes and moisture.
In addition to the defaults, we should add any block model fields that are present in the inventory files and which are relevant to scheduling. For example: product grades, contaminants, resource class, geological class, and water table class.
Any field which affects the commercial value of the material should be flagged in the Product Field column (i.e. tonnes and grades).

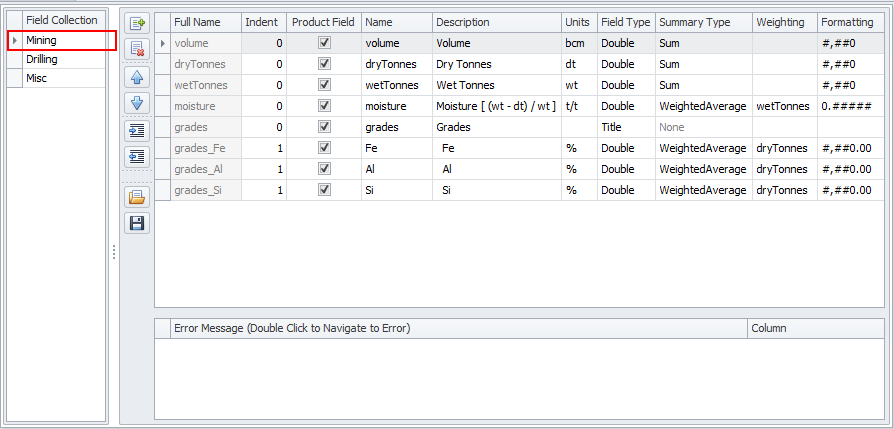

Mining Fields Collection Setup
Fields can be added, removed, ordered, grouped, imported and exported using the Side button menu. Hover the mouse over each icon to see the command description and hotkeys.
Buttons to Add, Delete, Move, Indent, Import and Export fields
Note
If there are any fields that are not filled in correctly, or that do not match the loaded script, an error message will be displayed in the Error Message panel below. Double-click to highlight the field with error. Correct any errors in the fields (if any) to proceed to the next setup steps.

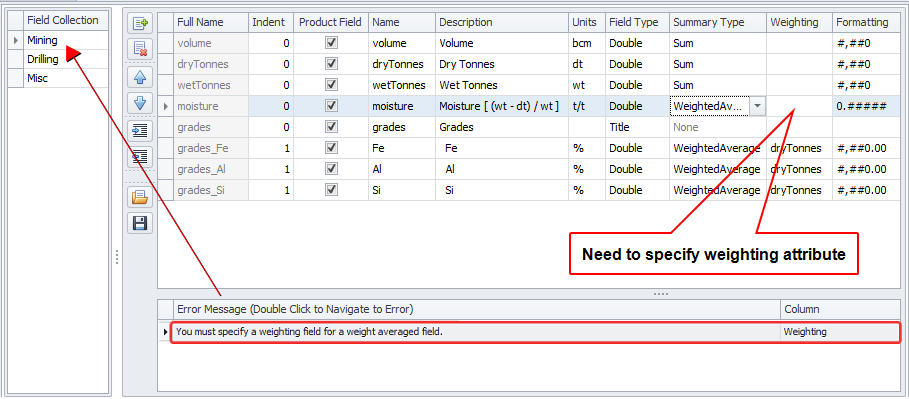

Error message describing an error and pointing to the column with it
Sample Fields
Find attached sample fields to populate Misc Fields, Mining fields and Drilling Fields as per the Demo project:
