Drilling Fields

Drilling Fields specified in the Setup Task > Reserve Database > Data Fields > Fields step are typically hole length, hole volume, and so on.

Note that Drilling Fields are only included in the Fields step if the Schedule Drills flag is enabled in the Configuration Options step.

See Drill Scheduling for more information.

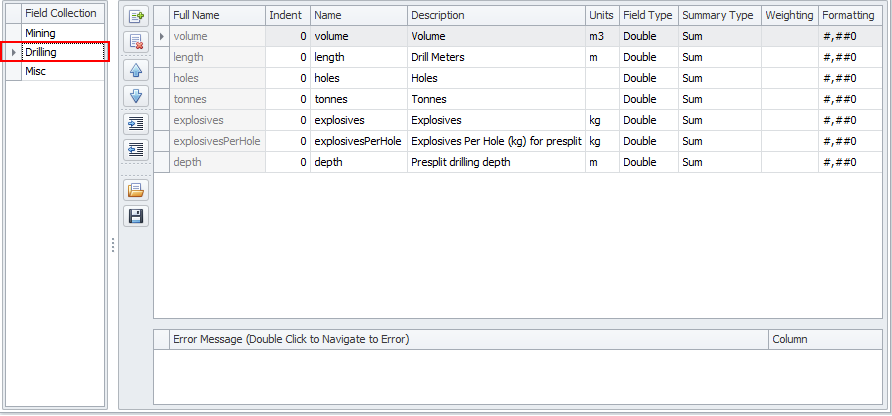

Drilling Fields Collection Setup

Fields can be added, removed, ordered, grouped, imported and exported using the Side button menu. Hover the mouse over each icon to see the command description and hotkeys.

Buttons to Add, Delete, Move, Indent, Import and Export fields

Sample Fields

Find attached sample fields to populate Misc Fields, Mining fields and Drilling Fields as per the Demo project:

• miscfields.openfields

• miningfields.openfields

• drillingfields.openfields

• miscfields_withdrilling.openfields
