Misc Fields

Miscellaneous Fields specified in the Setup Task > Reserve Database > Data Fields > Fields step wil include block type, solid volume, depletion, and location, etc.

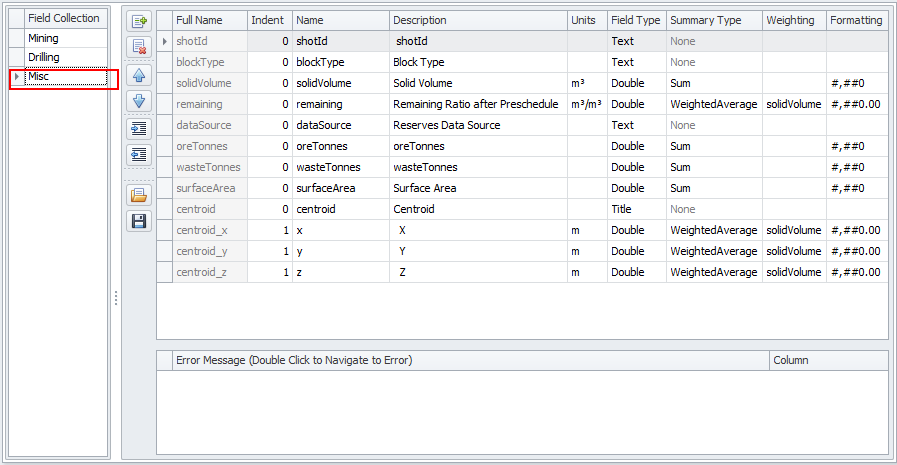

Misc Fields Collection Setup

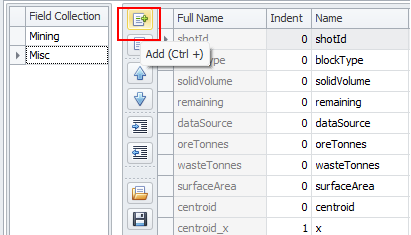

Fields can be added, removed, ordered, grouped, imported and exported using the Side button menu. Hover the mouse over each icon to see the command description and hotkeys.

Buttons to Add, Delete, Move, Indent, Import and Export fields

Sample Fields

Find attached sample fields to populate Misc Fields, Mining fields and Drilling Fields as per the Demo project:

• miscfields.openfields

• miningfields.openfields

• drillingfields.openfields

• miscfields_withdrilling.openfields
