Block Model

You can import a Block Model file into the application when either the Design Data window or the Animation window is open:

  1. In the Design Data pane, select Import | Block Model from the Block Models context menu.

  2. You will be prompted to select an import file format and then navigate to the folder location of the file you want to import. The following file formats are supported:

    3. File Format/Extension Description
    csv CSV Block Model File.
    DAT Micromine Block Model DATA file.
    dm Datamine Binary Block Model file.
    mdl Surpac Binary Block Model file.
    bmf Vulcan Binary Block Model file.

Any errors encountered during the import of a file will be listed in an Error List pane.

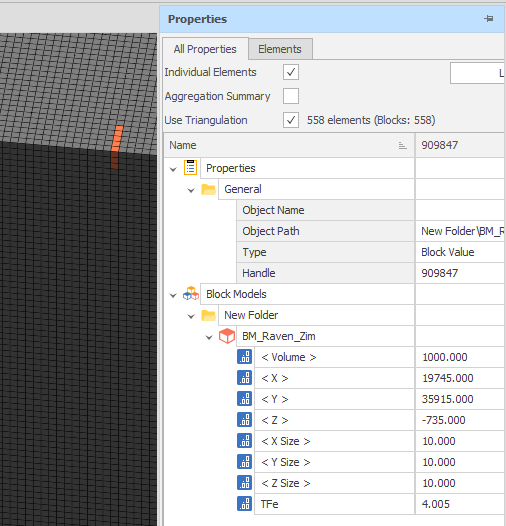

Once a Block Model has been successfully imported, you can set its Properties.
