Workspace Home Page

A Nexus workspace allows you to collaborate on group activities as part of a team and might be set up to represent a department or division of your organisation, or a mine site or region, making it easier to securely manage and deliver information and data which is relevant to a particular audience.

When you sign-in to Nexus, the workspace home page is displayed. The workspace home page is your starting point when working in Nexus.

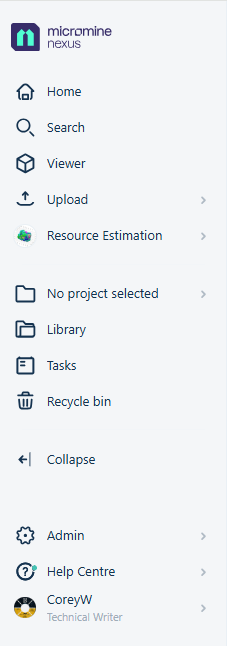

The options available to you in the left-hand Navigation menu, will depend upon your subscription plan and your (admin or user) role.

The Home option will return Nexus to the Home page from any other page.

The Nexus logo at the top of the menu will open the Micromine User Home, where you can manage your Account and Licences (with permission) and open Workspaces to which you have access:

The Collapse option will collapse the left-hand menu to provide more space at the right.

If multiple workspaces are supported, you can select between them:

  1. Click on <the name of the current workspace>.

  2. Select an option from the Workspace menu:

    • Select from a list of Recent Workspaces

    • View All Workspaces

Library

To meet the specific needs of your organisation, you can set up the structure of your workspace library storage in whichever way you want.

Version control is applied at the file level. Instances of the same file are shown at each upload destination.

Library

Projects

A Nexus project is typically a container for files which serve to achieve a single outcome, for example, a finalised block model or a periodic mining plan. You can link to a project when you integrate other Micromine applications with Nexus.Version control is applied at the file level. See: Setup a Nexus Project

Note that Nexus project storage is completely independent of workspace library and task storage.

To get started with Nexus projects, from the Navigation menu:

  1. Click on <the name of the current project> or, if no project has yet been selected, click on No Project Selected.

  2. Select an option from the Project menu:

    • Select from a list of Recent Projects

    • View All Projects

    • Set Project Settings

    • Create a Project

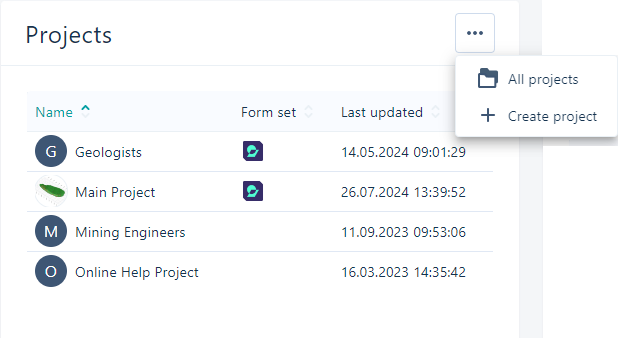

You can also select a project from the Projects panel in the Welcome screen, or show All Projects and Create a Project using the ellipsis at the top right:

Members

Your user name is listed in a Members pane (along with the user names of other users who have access to the workspace):

You can view more information about a Member by hovering on their avatar:

Administrators have a star icon displayed with their avatar.

If you click the View full profile button on the information panel that appears, the profile preview for that Member will be displayed.

For information on adding Members to the workspace, see Permissions.

Tasks

The Tasks for the current workspace are displayed in the Tasks panel.

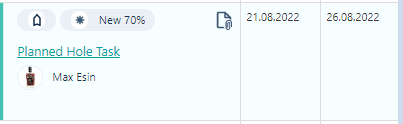

You can access the details of a task displayed in the panel by selecting the task name or double-clicking the row.

The details will be opened in a new page.

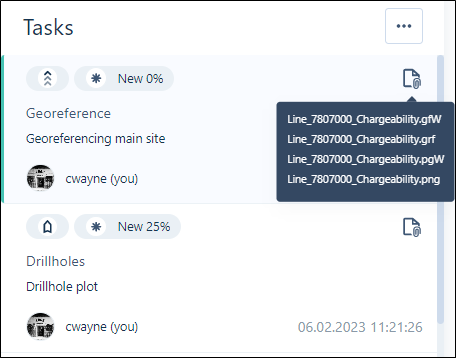

If a task has any attachments, an icon is displayed in the entry on the Tasks panel. You can click the icon to view the attachments in the page for the selected Task.

You can also display all tasks for the current workspace using the ellipsis at the top right of the Tasks panel on the Welcome page.

For information on creating and modifying tasks for the workspace, see Task Manager.
