Library

To meet the specific needs of your organisation, you can set up the structure of your workspace library storage in whichever way you want. Version control is applied at the file level. Instances of the same file are shown at each destination.

If you would like to view a quick informative video on setting up your Workspace, you can click the Help icon at the top right of the page and click Watch Tutorial:

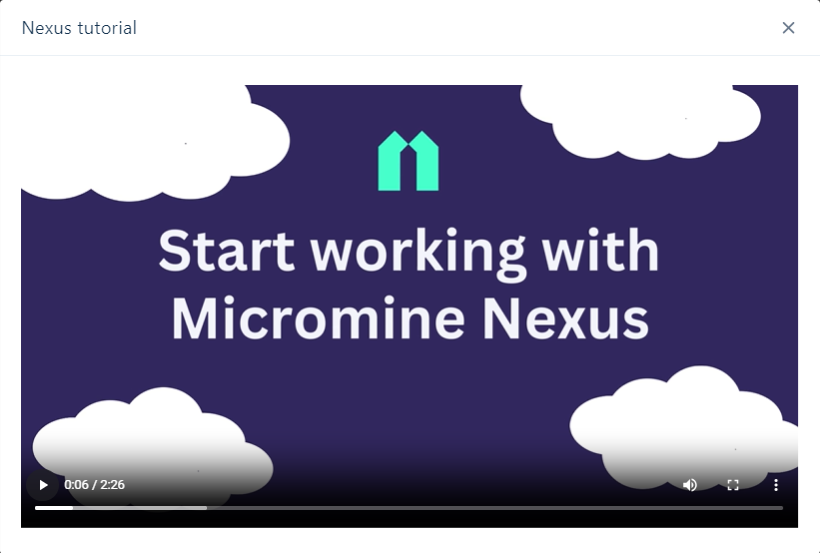

This will launch a window to play the Workspace tutorial:

Click the image above to view the video in your browser

Use the options on the ribbon to manage your library folders and files:

	Click to Upload files or folders to your workspace library folder or sub folder.
	Click to Refresh the page. The data and metadata on the page is refreshed by querying library storage. You can also press the F5 function key (or the Ctrl + R shortcut key).
	Click to create a New Folder in your workspace library folder or sub folder.
	Click to Show unavailable files in your workspace library to which you do not have access.
	You can toggle off the display of unavailable files with the Hide Unavailable button.
	Click to Download the selected file(s) or folder in your workspace library.
	Click Copy to to copy the selected file(s) or folder to another location in your workspace library.
	Click Move to to move the selected file(s) or folder to another location in your workspace library.
	Click Rename to rename a selected file or folder in your workspace library.
	Click Attach to task to attach the selected file(s) or folder to a task in your workspace library.
	Click Remove from here from the Remove sub menu to delete the selected file(s) or folder from the current location. The files or folder (and its contents) will be deleted from the location, but not from any other locations in the library storage. You will be prompted to confirm the deletion.
	Click Remove from everywhere from the Remove sub menu to delete the selected file(s) or folder from all locations. The files or folder (and its contents) will be deleted from library storage. You will be prompted to confirm the deletion.
	Click Object Page in the Info panel to open a page which displays various details for files and objects (Files, Drillholes, Wireframes Points, Strings etc).
	If you require access to an unavailable file, you click the Permissions button in the Info panel at the right.
	Click Subscribein the panel at the right to subscribe to a selected file or files in your workspace library. You will be notified when updates are made to the file/s.
	Click Check Outin the Info panel at the right to reserve the file/object for editing. While a file or object is 'checked out', no other user will be able to make changes to it across your workspaces and projects.
	Click Check Inin the Info panel at the right to return the 'checked out' file/object for editing. When a file/object is 'checked in', others across your workspaces and projects with access to the file will be able to make changes.
	Click the Download Link button in the Info panel to create a link to download a selected file that can be shared with other users. A URL is created which can be provided to external people without access to Micromine Nexus, in order to share data and allow the download of the file or folder. You will be prompted to select a lifetime for the link to be valid - 1 day, 1 week or 1 month. After the lifetime has expired, the file/folder will not be accessible through the generated link. Users attempting to access an expired file/folder will be redirected to an expired link notification page.
	Click Navigate Linkin the Info panel at the right to copy a link to the selected file in your workspace library. The created link will navigate to the file in the tenant and display the details in the Info panel. If the Navigate Link was created from the Viewer tools, the file will be opened in the Viewer.
	Toggle between Show Search and Hide Search to display the text search field for the workspace library. The list will be filtered by any text entered in the field.
	Toggle between Grid View and Table View to change the display of the workspace library between a list in Grid view to tiles of icons in Table view.
	Click the Viewer icon in the grid to view the selected Nexus wireframe object models in the Viewer. Note: This feature is only available for models from Micromine Origin & Beyond 23.5.
	Click the Preview icon in the grid to toggle display of the Info panel for the selected file/s.

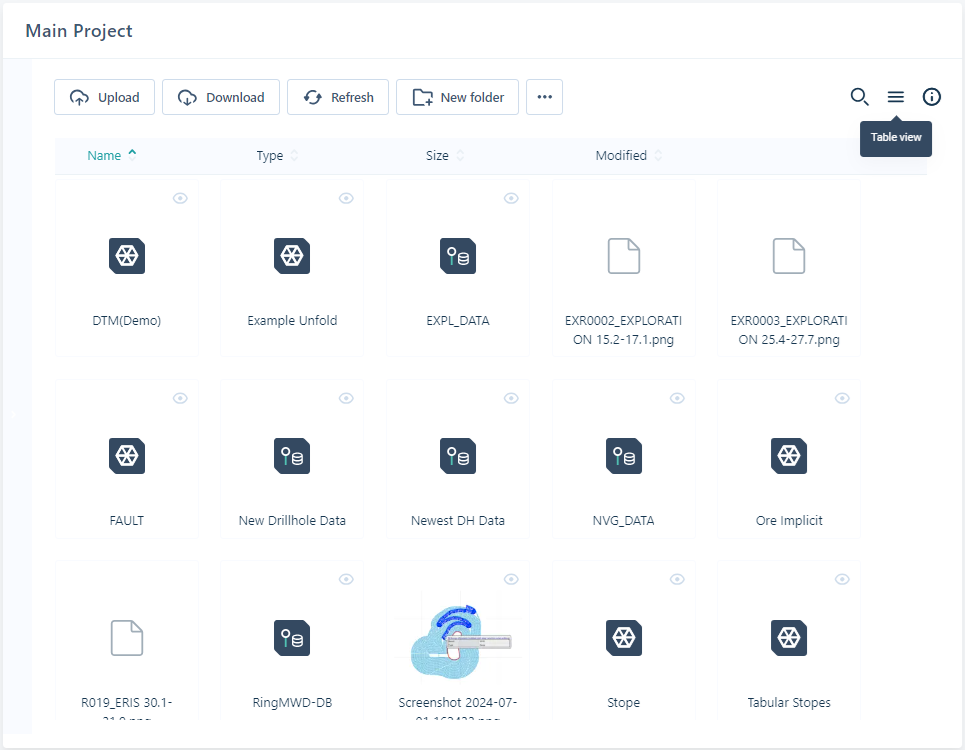

In Table view icons are tiled in the Library and previews of some file types are displayed.

The context menu for the File browser can be opened by right-clicking on a file:

If a file is not selected or you right-click anywhere else in the library, the context menu will be displayed, but no actions will be available:

Note that Nexus project storage is completely independent of workspace library and task storage.

Navigate Link

The Navigate Link option in the context menu, Viewer, and browsers allows you to create a direct link to a selected file, object or folder that can be opened by another, authenticated user. Selecting any file / object from the browser and picking Navigate Link from the context menu will add the link to your clipboard to be shared. When the recipient clicks the link, they will be taken to Nexus and asked to login before being taken directly to the file, object or folder in the browser. The element you created the link for will be opened in the Info panel and can be viewed, downloaded and worked with as normal from there:

If you share a Navigate Link directly from the Viewer or Document Viewer, the recipient will be able to open it directly in the Viewer or in Document Preview mode respectively. If you create a link to a Folder in the browser, the root of the folder will be opened for the recipient of the link.
