Edit

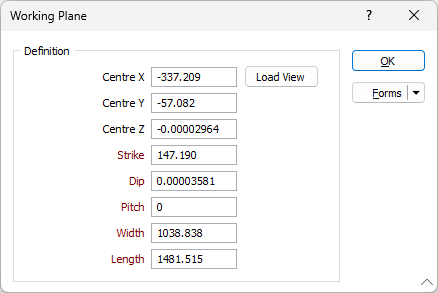

On the Vizex tab, in the Working Plane group: Click Edit Plane (or select the same option from the Vizex right-click menu) to manually set the (Strike, Dip, Pitch, Width and Length) parameters of the working plane.

You can also adjust the centre point of the plane. If the Centre X, Y and Z values are left blank, the centre of the current view is used.

Click Load View to the Load View button to make the plane centre on the current view and also use the strike, dip and pitch of the current view

The parameters you enter can be saved to a form set which can be used as search parameters for anisotropic trends.
