Seam Thickness

On the Grid / DTM tab, in the DTM Tools group: Click Seam Thickness to generate a DTM in which the Z values represent the thickness, using two input DTMs which represent the Floor and Roof of a seam. In addition, you can generate a file that contains the thickness at each point. If you choose to generate contours, these will be displayed and may be written to a file.

Roof and Floor DTM files

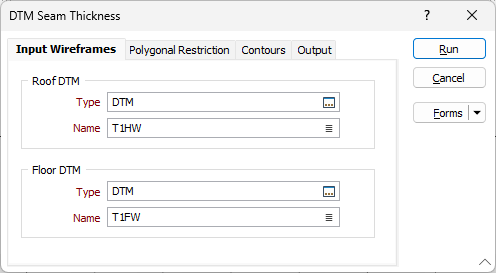

Enter the name and type of the Roof and Floor DTM files. For faster and more accurate results, enter the more complex model as the Roof DTM.

You can also use the Pick from Vizex button (or select the context menu option where available) to collapse the form and interactively select the required Wireframe to insert and return to the form.

Polygonal Restriction

Contours

Output

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Enter parameters in the Polygonal Restriction, Contours, and Output tabs of the form, then click Run to run the function.
