Categorical Shells

On the Categorical Shells tab of the form, you have the option to define the category shells set up in the Categorical tab for the output. For each shell, you can enable/disable their display and select a display colour.

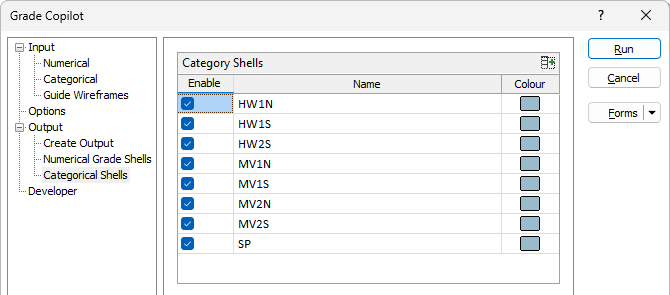

Category Shells

The Category Shells grid displays the codes set up in the Categorical tab for the output.

Use the grid to determine how many wireframes will be output as a result of the process.

If you click the Autofill the grid button in the Category Shells grid toolbar, you can select a colour set for the category shell codes.

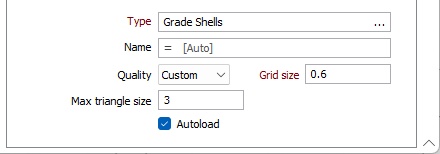

Type

Select the wireframe Type for the categorical shell output.

Name

Select the Name of the wireframe for the output.

Quality

This setting provides a convenient way to control the quality and the speed of output generation. There are five quality settings: Draft, Standard, High, Ultra and Custom.

Setting the quality to Draft allows the general shape of the output model to be generated quickly. Setting the Quality to Custom allows a user-specified error tolerance.

The Quality menu on the Output tab of the Geology Model form

Grid Size

With the exception of Custom, each quality setting has a pre-set grid size setting:

  • Draft quality is calculated based on the size of the area you are modelling, but cannot be lower than 0.8. Adaptive sampling is not applied to Draft.

  • Standard quality is calculated based on the size of the area you are modelling, but cannot be lower than 0.4. Adaptive sampling is not applied to Standard.

  • High quality uses a value of 0.2 and applies adaptive sampling.

  • Ultra quality has the highest quality value of 0.05, as well as using adaptive sampling.

Quality settings which use adaptive sampling may take a longer time to generate wireframes, but the wireframes will be of much higher quality.

If you have selected Custom quality, you can enter a custom Grid Size value in the field provided. Adaptive sampling is used as part of the Custom setting, regardless of the grid size value. The surface extracted from the implicit model is done to the accuracy defined by the grid size, such that the difference between the wireframe surface and the theoretically perfect mathematical model falls within the measured distance. The valid range of grid size is from 0.05 to 1, with 0.05 being the same quality as Ultra.

Max triangle size

To eliminate large meshes, specify a Maximum triangle size parameter in grid units.

By default, mesh size is controlled by the Grid Size parameter, which specifies the maximum error between the rendered surface and the actual surface. Typically, larger meshes are used where the surface is relatively flat, and smaller meshes are used where the surface has high curvature.

If a Max Triangle Size is specified, all triangles will be that size, or smaller if they fail the grid size tolerance test.

Autoload

Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.
