Symbology Numeric Legend

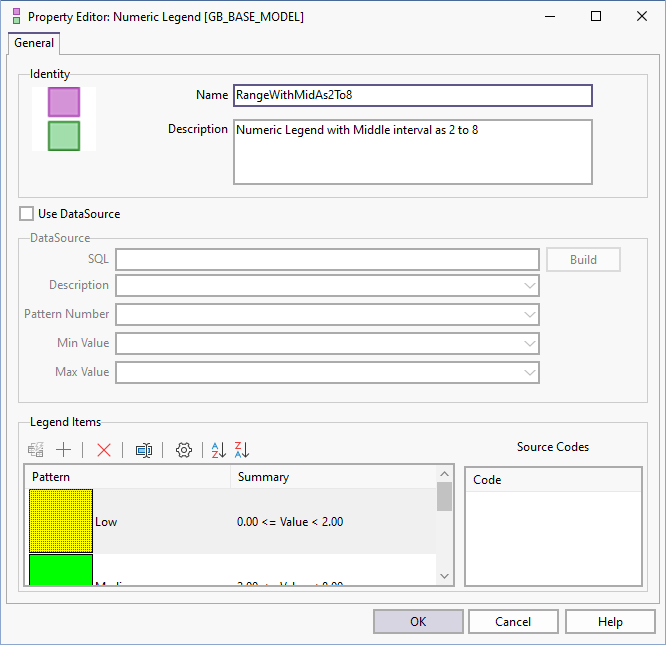

The Symbology Set Numeric Legend Property Editor is opened when you click the Properties button when a numeric legend is selected on the Legends tab of the Symbology Set Property Editor. See: Legends.
Identity
The Name attribute is used to identify the template in the Templates list. Template names must be unique. Choose a short but descriptive name which includes the template type and data category.
To avoid potential problems, avoid using spaces or special characters in template names.
Optionally enter a Description that describes what data is associated with the template object.
Use DataSource
Select this option to write a query to return the values that will be matched to the patterns in the legend.
Legend Items

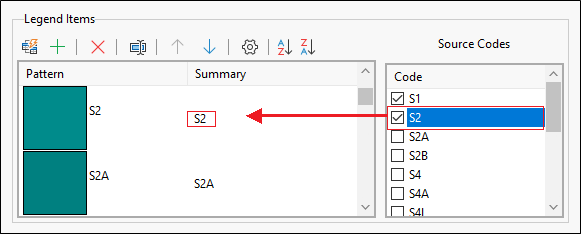

Use the grid list controls to build the legend by adding and rearranging items:
|
|
If you have selected the Use datasource check box option, click the Add Wizard button to populate the list of source codes. |
|
Click the Add button to create and add a new legend item. |
|
Click the Remove button to remove the legend items currently selected in the items list. |
|
Click the Rename button to rename the legend item currently selected in the items list. |
|
Click the Move Up and Move Down buttons to adjust the order of the items in the legend. |
|
Click the Properties button to view and optionally edit the Symbology Text Legend Item of the item currently selected in the list. |
|
Click the Sort buttons to sort the legend items in ascending or descending order. |
