Symbology Text Legend Item

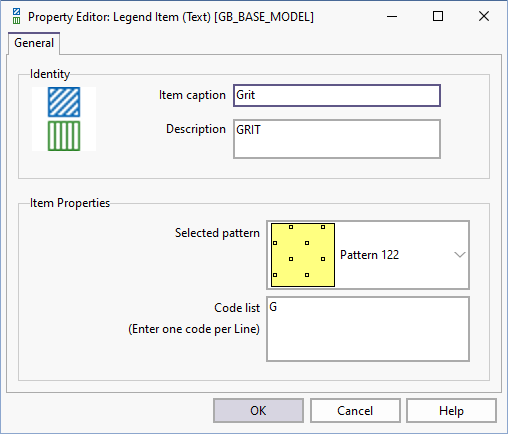

The Symbology Set Text Legend Item Property Editor is opened when you click the Properties button when a legend item is selected in the Symbology Text Legend Property Editor. See: Symbology Text Legend

Identity

The Display caption may or may not reflect what is entered for the Code list (see below). If necessary, enter a brief description for the item.

Selected pattern

The pattern currently allocated to the item is shown. You can change the pattern by selecting another one from the drop-down patterns list.

Code list

Enter a code that will be associated with this legend item. If there is more than one code, enter one code per line. You can refer to the code list generated when you have selected the Use DataSource option in the Symbology Text Legend Property Editor.
