Legends

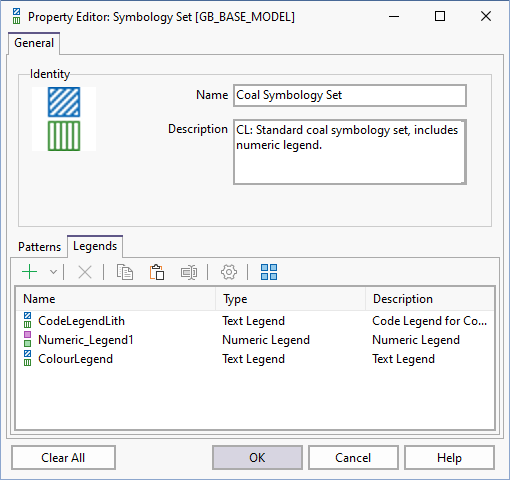

Use the Legends tab of the Symbology Set Property Editor, to create a new symbology set, or edit the properties of an existing set. The legends that are currently defined in the set (if any) are shown on the Legends page:

	Click the Add button to create and add a new Symbology Text Legend or Symbology Numeric Legend.
	Click the Remove button to remove the legend currently selected in the legends list. You will be prompted to confirm the deletion.
	Click the Copy button to copy a legend currently selected in the legends list. You can then create a new legend by using the Paste button to add the copied legend to the list.
	Click the Rename button to rename the legend currently selected in the legends list.
	Click the Properties button to view and optionally edit the properties of the legend currently selected in the patterns list.
	Click the Select All button to select all of the patterns currently selected in the patterns list.

To set the properties of the patterns that are referenced by a numeric or a text legend, click on the Property Editor: Symbology Set tab.
