Quick Start Tutorial

Spatial Conformetrics calculates the overlap between a plan volume and a survey volume. The resulting charts and tables provide visual communication and a simple scoring system for conversations around business improvement.

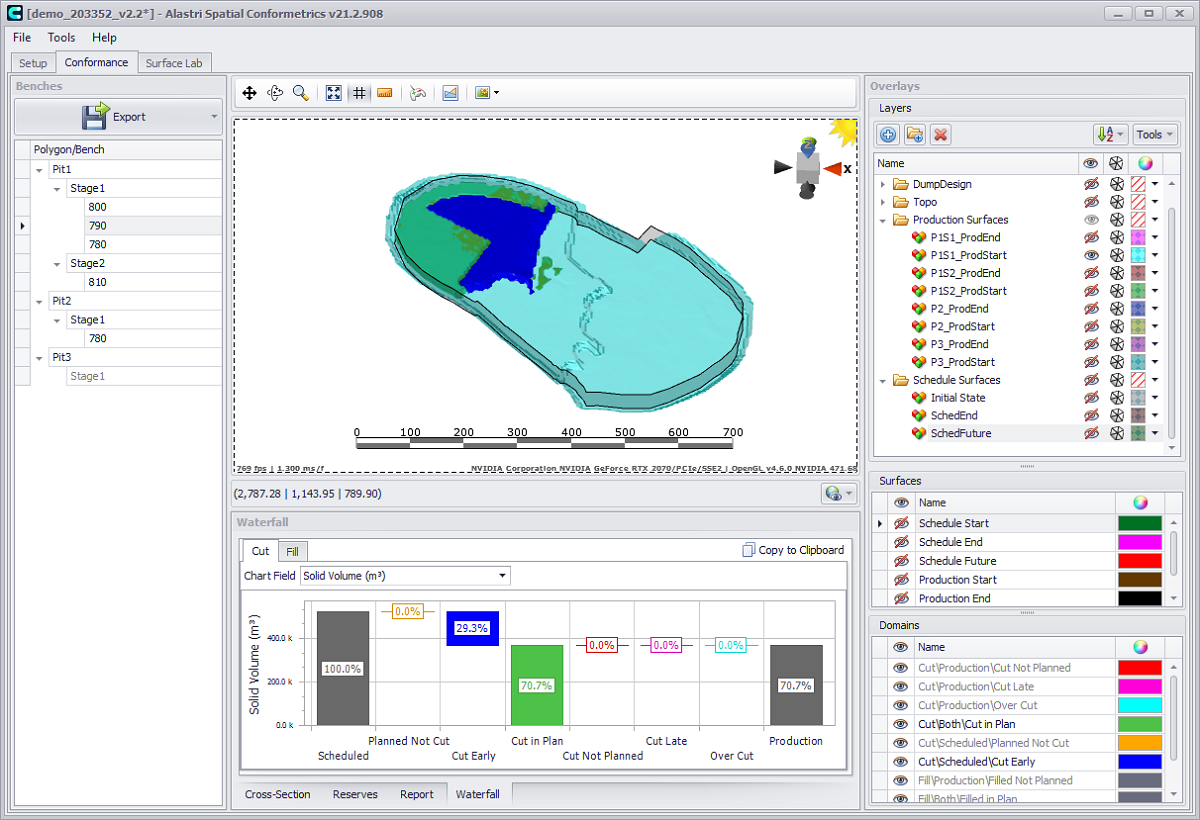

Spatial Conformetrics Conformance tab view

Spatial Conformetrics is organized into three tabs:

  • Setup tab - contains an ordered task list to prepare the project.

  • Conformance tab - presents a 3D reporting environment to assess results.

  • Surface Lab tab - may be used to create composite surfaces and triangulations.

Brief description of these tabs see below and detailed information is available by clicking on the links provided.

The exercises in this chapter are for familiarization purposes and are deliberately light on detail. More in-depth discussion follows in the next sections.

Unless otherwise noted, each exercise follows from the preceding exercise.
