Step 5: Create the Stockpile Process(es)

In your scenario:

  1. Create a new entry for each process that will take from the stockpiles.

  2. Map the Volume to the Source and Destination Quantity fields.

    Any process that you want to visually represent in the Animation after it has been worked must have a Destination Quantity associated with it.

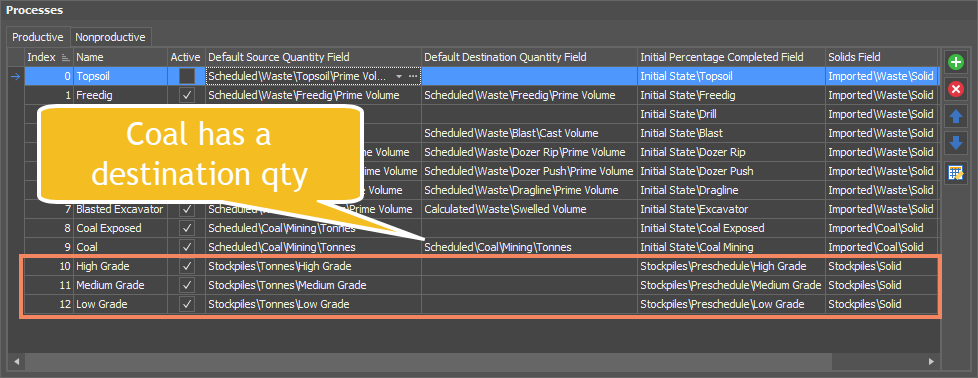

    In the example above, the Coal process has been given a Destination Quantity so that it can be visually represented on the Stockpile.

    The three Stockpile processes represent material being taken from the stockpile and shipped off-site, therefore no Destination Quantity is required.

  1. Map the Stockpile Solid to the Solids Field

For haulage purposes, create a new Centroid Field on your Source Table, run the Centroid Calculator and map the Centroid Field to your Processes.
