Export Tables

An exported table structure is really only intended for use between projects/ models and is an .xml file which includes:

  • Ranges

  • Levels and Positions

  • Fields

  • Table Plots

  • Table Parameters

  • Block Model Interrogations

  • Pivot Tables

  • Node Sortings

The most common use of exported table structures are to collaborate (especially Ranges) between models or to have a skeleton structure to build multiple models from.

To export table structures:

  1. In the Project Explorer, right-click on Data and select Export Tables:

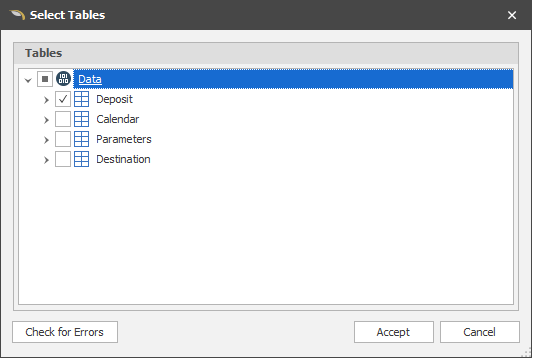

  1. In the Select Tables window you can expand or collapse each table structure (by default each table structure is expanded).

  1. Before modifying your selection, you can Select All / Deselect All ranges, levels, fields and table plots using the selection box provided:

  1. Click the Check for Errors button to the table structures you hasve selected for export are valid.

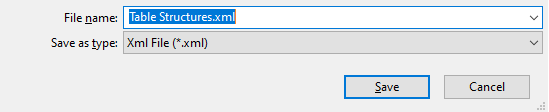

  1. Click Accept to export the table structure(s) you have selected to an .xml file that can be imported to another project.
