Configuration

The Chainage configuration option allows for grades in the Materials Management Grades and Movements screens to be surveyed and reported based on a Chainage (total metres advanced) measure.

There are two configuration steps:

Configuring Chainage

Chainage is configured in Materials management -> Configuration. At the bottom of the screen, select Yes to enable Chainage, and select the Chainage Measure. The measure must be one that is configured both for locations and as a cumulative measure.

Reference Edit

Chainage is entered as a summed or cumulative measure against a location. The corresponding location measures must be configured in reference data. For example:

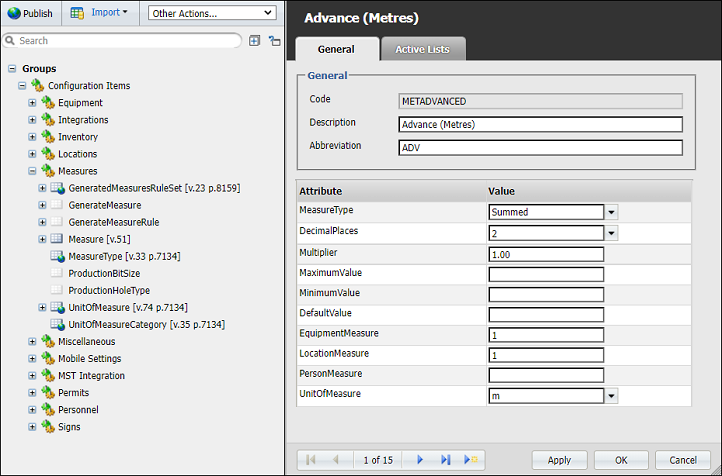

A summed location measure:

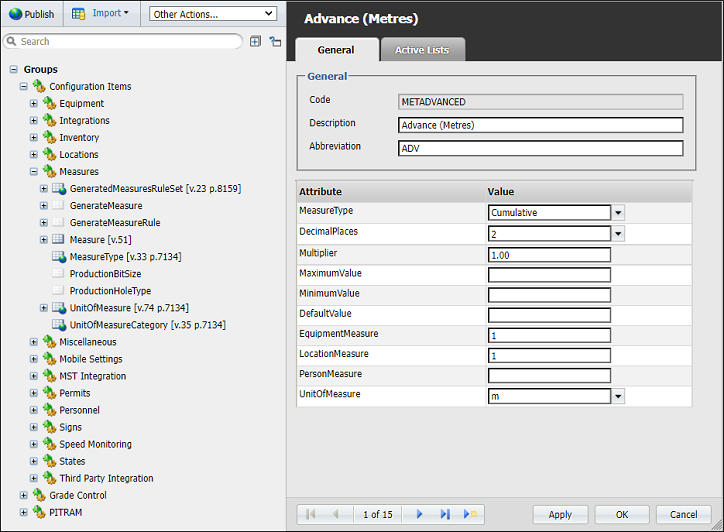

A cumulative location measure:

After configuring and publishing the reference data, chainage measures may be recorded against locations in Data Acquisition.
