Edit Waypoints

To edit a waypoint in Reference Edit:

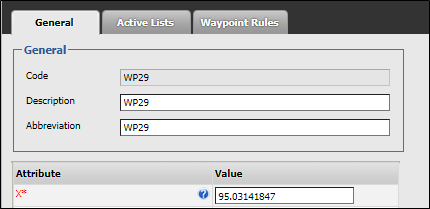

  1. Double-click on the new waypoint to open the Properties window.

  1. In the General tab, enter a Description and an Abbreviation for the waypoint.
  2. Review the attributes of the waypoint and edit where applicable. Required attributes are denoted with an asterisk*:


Attribute Description
X * Easting coordinate.
Y * Northing coordinate.
Z * 0 (elevation or RL coordinate)
XY Radius * 10.000
  The radius of influence about the point.
Z Threshold * 0.000
  The measurement either side of the point in the Z dimension. This further defines the zone of influence of the point.
MstID 0
  The MST tag number associated with the point.
WaypointDeviceId The identification number of a device or tag reader located at the waypoint.
  This attribute must be defined if a tag reader is associated with the location. Tag readers monitor any tagged equipment or personnel that pass the waypoint if a tagging system is used on site.
MineLevel Select one of the defined mine levels.
  Mine levels are defined in the Groups | Configuration Items | Locations | Mine Level reference group.
IsSurface Boolean, defined as:

  • 1 = True. This waypoint will be identified as a surface waypoint.
  • 0 = False. This waypoint is not a surface waypoint.


  1. Finally, click Apply to save your changes.

To define the actions associated with a waypoint, click on Waypoint Rules tab. See: Defining a Waypoint Rule
