Sections Pane

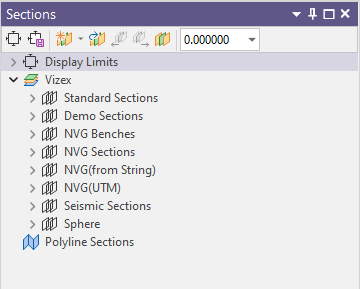

On the Vizex | Sections tab, in the View group: Click Sections Pane to toggle the display of the Sections Pane on and off.

  1. Change the orientation and the extent of the display
  2. Double-click on the Display Limits node to define Display Limits and apply them to the display.

    Alternatively, display limits which have previously been saved as form sets, are available for selection under the Display Limits node.

    You can right-click (or double-click) on the name of a display limits form set to apply those limits to the display.

  1. Define and retrieve sets of predefined sections and plans
  2. Standard Sections

    Standard sections can be selected and displayed. This saves a lot of time navigating the display.

    Section control files

    You can also load the sections defined in a Section Control File.

    A subset of the tools on the Vizex | Sections tab, in the Section Control File group, are provided at the top of the Sections Window. You can create a new section control file, open an existing section control file, edit a section control file selected in the Sections Window, or update a named section selected in the Sections Window.

  • Click Create Section Control File to create a new section control file:
  • The file you create is saved to a SECTIONS sub-folder underneath the current project folder and a node for the opened section control file is added to the Sections Window.

  • Click Open Section Control File to open an existing section control file:
  • A node for the section control file is added to the Sections Window.

  • Click the Edit Section Control File button to edit the selected section control file in the File Editor:
  • Click Create Named Section to add a section to the current section control file:

To move from section to section

  1. Double-click on the sections listed under the node of a section control file. When a section is current, it is shown as bold in the list of sections, and the section view is applied to the Vizex display.
  1. Alternatively, use the Previous Section and Next Section tools on the Vizex | Sections tab, in the Section Control File group, to move sequentially through the sections defined in the section control file, or define further sections.

To add a section to a control file

  1. Select a section control file and click Create Named Section on the Vizex | Sections tab, in the Section Control File group. Alternatively, right-click on the name of the section control file and select the Create Named Section menu option.
  1. Enter a name for the section and then press Enter on your keyboard.
  2. The section is added to the end of the section control file. See 'Update a section" below.

  1. To save the section(s) you have added, right-click on the name of the section control file and click Save Control File.

Display a section

  • Right-click (or double-click) on the name of the section and select Display to apply that section to the display.

Edit a section

  • Right-click on the name of the section and select Edit to open the file for editing.
  • The section control file is opened in the File Editor and the section is highlighted in the file.

Delete a section

  • Right-click on the name of the section and select Delete to remove that section from the section control file.

Update a section

  1. Double-click on the section name. When a section is current, it is shown as bold in the list of sections, and the section view is applied to the Vizex display.
  2. Use the Tools on the Vizex > Sections tab to manipulate the section view.
  3. Right-click on the name of the section and select Update to update the named section using the current display limits.
  4. When the section is changed using the normal Next Section/Previous Section buttons the Vizex | Sections tab, in the Navigation group, the distance between the current (displayed) section and the active (selected in the control file) section is displayed.
