Label

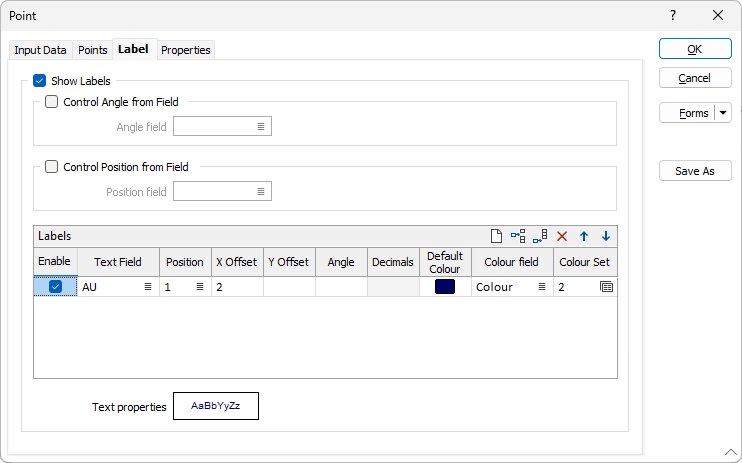

Use the Label tab of the Point form to define the appearance and the position of the text that will be used to annotate the points. A single field can be used to control the angle of all labels, or you can specify an angle value for each label. Colour fields and defaults can be specified for each label.
A typical use would be for the display of geochemical plots with values from several different data fields around each point.
Show Labels
Select this option to specify the fields and values that will be used to label the points. You can show up to ten labels for each point.
Control Angle From Field/ Angle field
Select this option to apply the values contained in a specified Angle field. When this option is selected, the Angle inputs in the Label Definition pane (see below) are disabled.
Control Position From Field/ Position field
Select this option to apply the values contained in a specified Position field. When this option is selected, the Position inputs in the Label Definition pane (see below) are disabled.
Enable
Select the Enable check boxes to enable individual labels. The check boxes are selected by default. Use the buttons on the local toolbar to Manage the rows in the list.
Text field
Double-click, or click on the List icon, to select the name of a field that contains the values you want to label. Dynamic field expressions are supported. Click on the Use an expression instead link to open the Expression Editor.
Position
The position of the annotation. Annotation can be located at one of fifteen positions on or around the coordinate point. Double-click (or press F3) to open the dialog box from where you can select a suitable position. See: Positioning Labels
X and Y offsets
To offset the label text, specify X and Y offset values. Offset units are "Character" widths, not grid units.
Angle
Specify the angle (0° to 360°) at which the annotated text will be drawn. An angle of 0° results in vertical (up) text.
An angle of 90° results in horizontal (to the right) text, however this is the default. Leaving the Angle response blank will also produce horizontal (to the right) text.
Decimals
For Numeric field labels, specify the number of decimal places to display.
Default colour
Double-click (F3) to select the colour that will be used when a Colour field or a Colour set is not defined - or when a value in the Colour field is either not valid or is not mapped in the Colour set.
Colour field
Specify the name of a field which contains the values that will be used to colour-code the display. If you are mapping Colour field values to a Colour Set, the values in the Colour field must be valid RGB, HTML Hex, Hex, or Integer colour definitions.
| Format | Example | |
|---|---|---|
| RGB | 89,169,215 | RGB ordered |
| HTML Hex | #59A9D7 | BGR ordered |
| Hex | 0x59a9d7 | BGR ordered |
| Int | 5876183 | BGR ordered: RED + (GREEN*256) + (BLUE*65536) |
You can choose to select colour values directly from the Colour field without selecting a Colour set. In this case, you can also select a formatted Colour field.
Colour set
To map values in the Colour field to the colour values in a Colour set, double click (F3) to select the set that will be used to control the display colour. Right-click (F4) to create or edit a Colour set.
Text Properties
Double-click on the Text Properties Preview box to select a font and set text properties for the labels.
