Round Templates

On the Mining | Development Drilling tab, in the Setup group: Click Round Templates to create and manage the templates that can be selected when you add a round to the design.

New

Templates are created by calling the Add Round tool from the Round Templates form. Click New to create a new round template in the Add Round form.

Edit

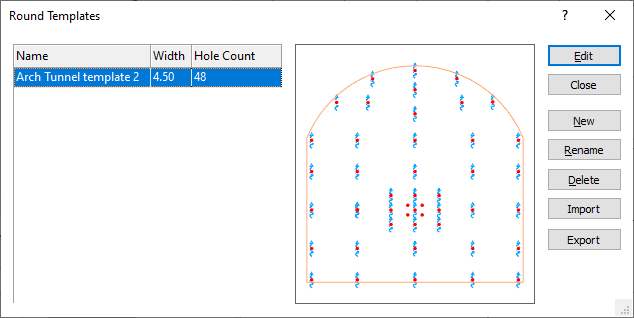

A list of templates is displayed to the left of a preview window. When you select a template, a preview of its profile shape is shown. Click the Edit button to open the round template in the Round Editor window, where changes can be made and saved using the Save Template button. See: Edit Round

Rename

Click Rename to rename the selected round template.

Delete

Click Delete to delete the selected round templates. Caution: You will not be prompted to confirm or cancel the deletion.

Import

Templates exported as (.mmhdf) Heading Design files can be shared between users and imported. You will be prompted to navigate to the location of the (.mmhdf) Heading Design file you want to import.

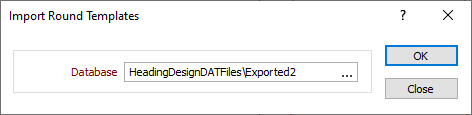

Import

Templates exported to a (.mmhdf) Heading Design file can be shared between users and imported. You will be prompted to navigate to the location of the (.mmhdf) Heading Design file you want to import one or more templates from.

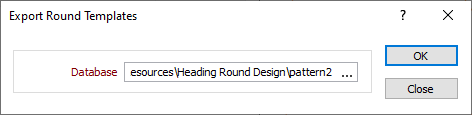

Export

Templates can be exported to allow sharing between different users and projects. You will be prompted to navigate to the location of the (.mmhdf) Heading Design file you want to export the selected templates to.

Close

Click the Close button to close the Round Templates window.
