Report File Expression

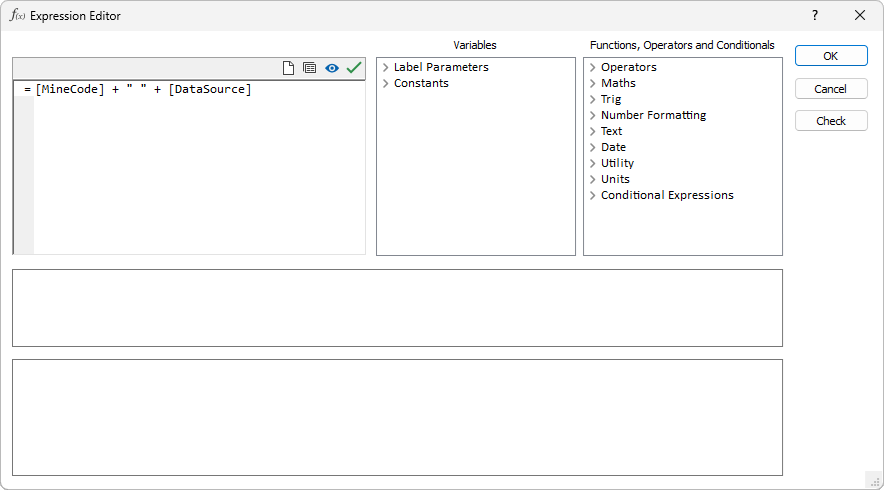

(Optional.) In the Report File Expression box, specify the expression to be used to generate the names of the Report files. Click the buddy button on the left-hand side of the field to invoke the Expression Editor.
The following context variables are provided within the Expression Editor to support automated use of custom naming conventions for report files:
|
Group |
Variable |
Description |
Example |
|---|---|---|---|
|
Data Source |
|
|
|
|
|
DataSource |
Name of data source selected in Report Data Sources > Report for which report was generated. |
“Extractions by Material Bin” |
|
|
GeneratorForm |
Name of Report Generator form set specified in Report Data Sources > Report Generator used to process data source. |
“Integra Model SO Custom Report” |
|
Report Variables |
|
|
|
|
|
CreatedBy |
Microsoft Windows user name for user by which was report was generated. |
“jbloggs” |
|
|
Version |
Version of the application with which report was generated. |
“21.5.299.2” |
|
|
MineCode |
Code specified on Mine tab for underground mine for which report was generated. |
“INTG” |
|
|
ReportDate |
Date (in format YYYYMMDD) on which report was generated. |
July 27, 2021 = “20210727” |
For more about the Expression Editor, see: Expression Editor
